mSATA SSD MINI PCIe interface

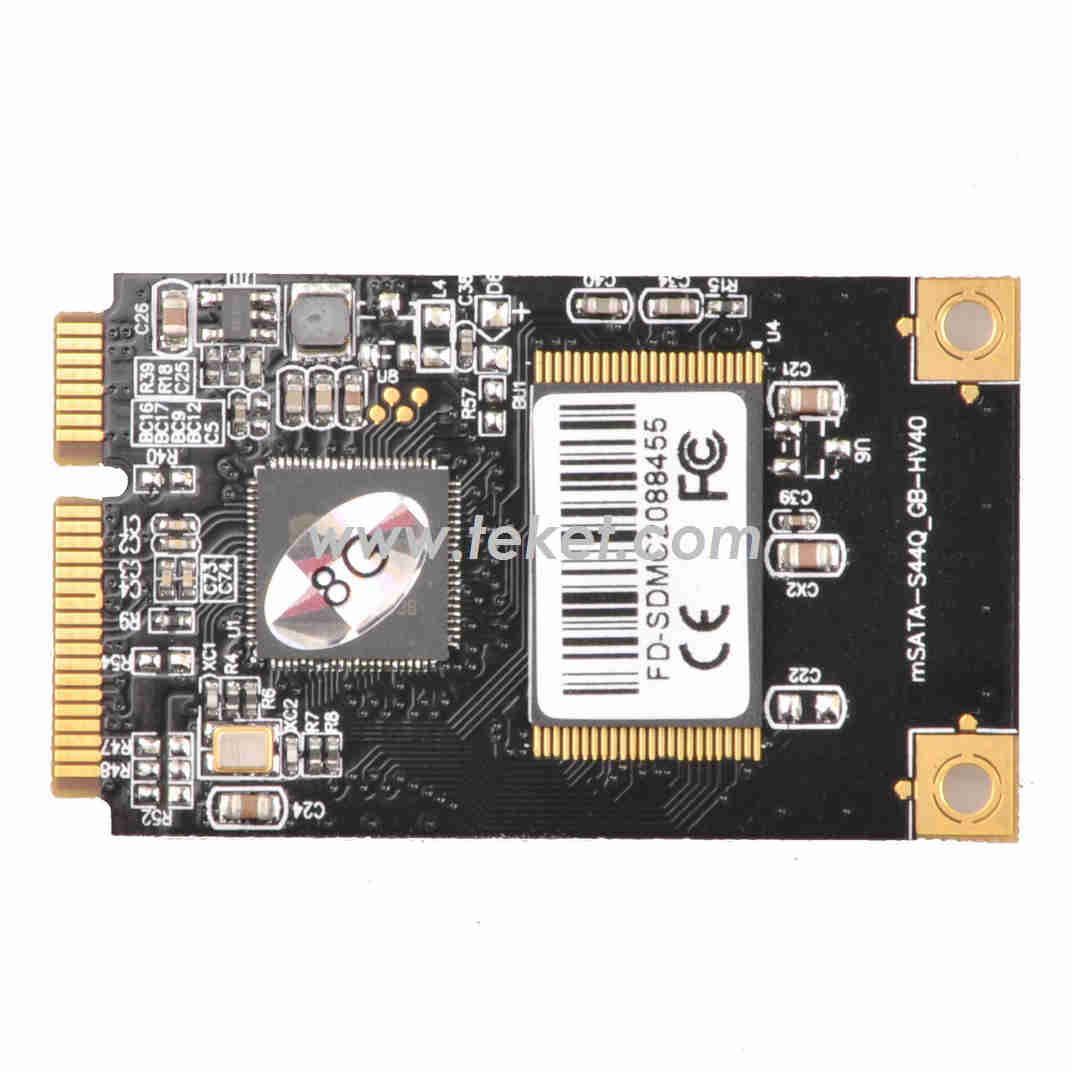

TEKET mSATA SSD, mini-pice interface, FM series

Pictures The main specifications

Manufacturers: TEKET
Product Name: MSATA-XXXM
Interface: mSATA (SATA 3Gbps)
Main controller:
flash type: MLC
Capacity:
Maximum sequential read:
Maximum sequential write:
Maximum random 4K write:
ECC protection: yes
Power off data protection: no
Intelligent block management: yes
Search time: 100ms
TRIM support: yes
Weight: 6g
Start-up temperature: 0, 70 degrees
Storage Temperature: -45,+85 degrees
Electricity consumption: 1.7w, 0.5w standby
Quality guarantee period: three years
Model:
MSATA-004M
MSATA-008M
MSATA-016M
MSATA-032M
MSATA-064M

(Note:Electrical specifications and weight will vary with different capacity of products.)

MSATA 2.0 M2 SSD

model	.	M2 4G 8G 16G 32G 64G
Gerneral	Interface	SATAII/3.0 Gbps
.	Dimensions	50.95 x 30 x 3.6mm
.	Capacity	60GB/120GB/240GB/480GB
Storage Media	.	MLC NAND Flash
Performance	Sustained Read	up to 48MB/s,120MB/s,160MB/s,200MB/s,200MB/s
.	Sustained Write	up to 9MB/s,18MB/s,19MB/s,40MB/s,60MB/s
.	4K random I/O read	N/A
.	4K random I/O write	N/A
Power Consumption	input Voltage	3V
.	Idle	0.2w
.	Active	1w(4G,8G,16G),1.5w(32G,64G)
Reliability& Endurance	Wear-Leveling	Dynamic and static wear-leveling
.	Data Retention	10years at 26oC
.	MTBF	>2,000,000hours
.	Bad Block Management	Auto Bad Block Management in system
.	ECC	Supports BCH ECC 72bits in 1K bytes
Warranty	Time limit	3years
Environment	Operating Temperature	0 - +70℃
.	Storage Temperature	-40 - +100℃
.	Shock	1000G
.	Vibration	15G
.	Ambient Humidity	5%-95%
Available	.	YES,No EOL
Testing OS	.	WindowsXP SP2
Testing Platform	.	Mainboard:ASUS B75M-A;CPU:G1620 2.7Ghz;DRAM:DDR3 2GB
Testing Software	.	CrystalDiskMark 3.01 x64

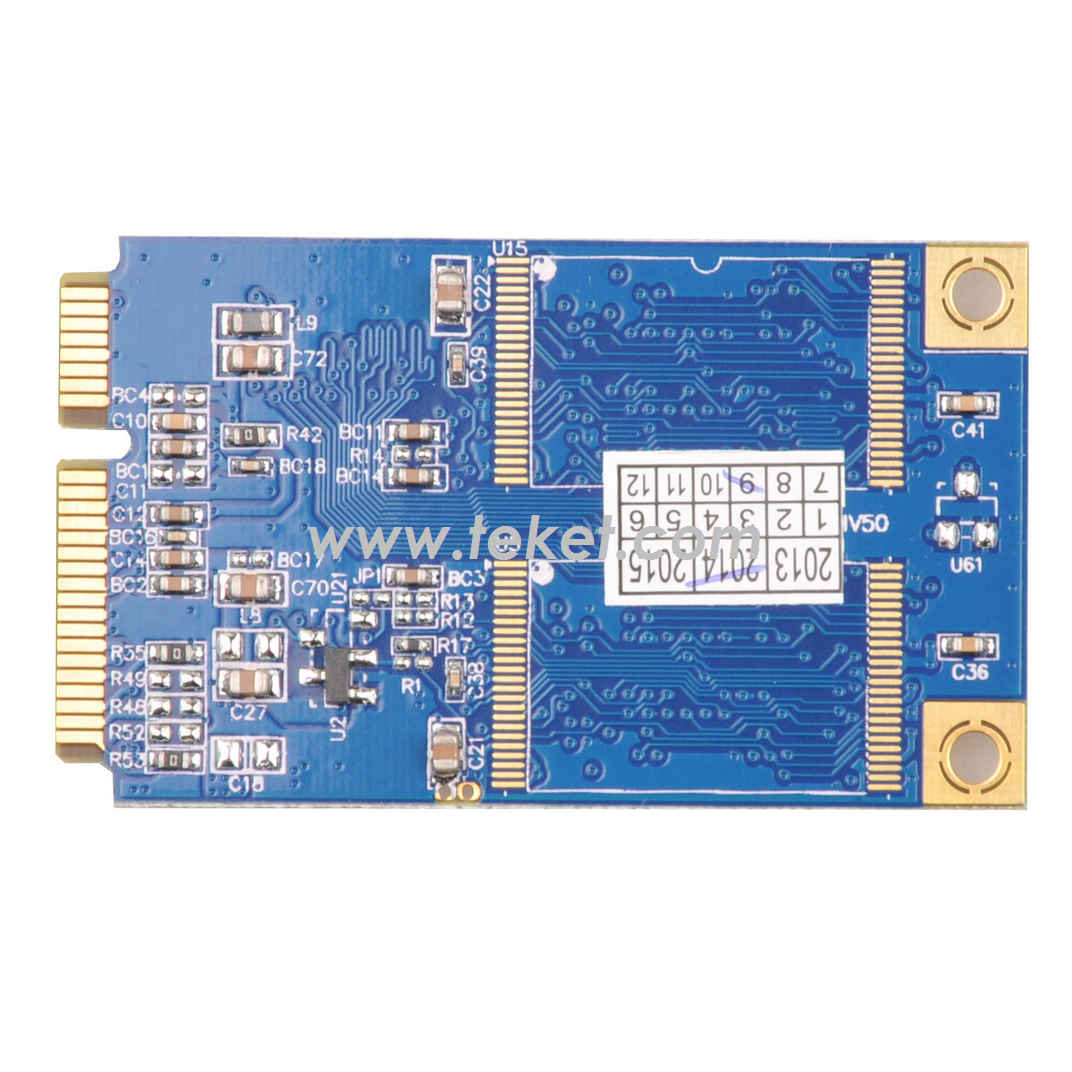

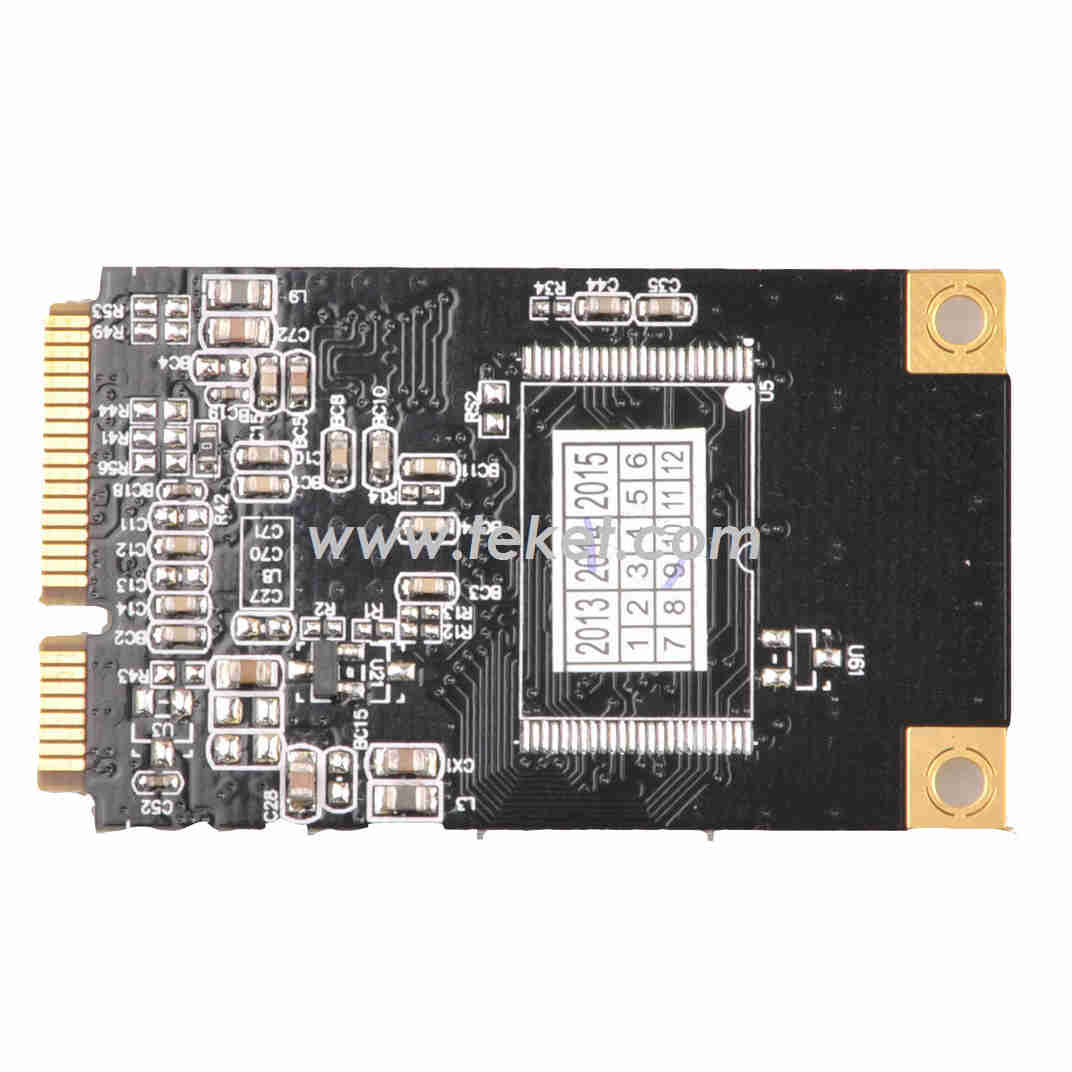

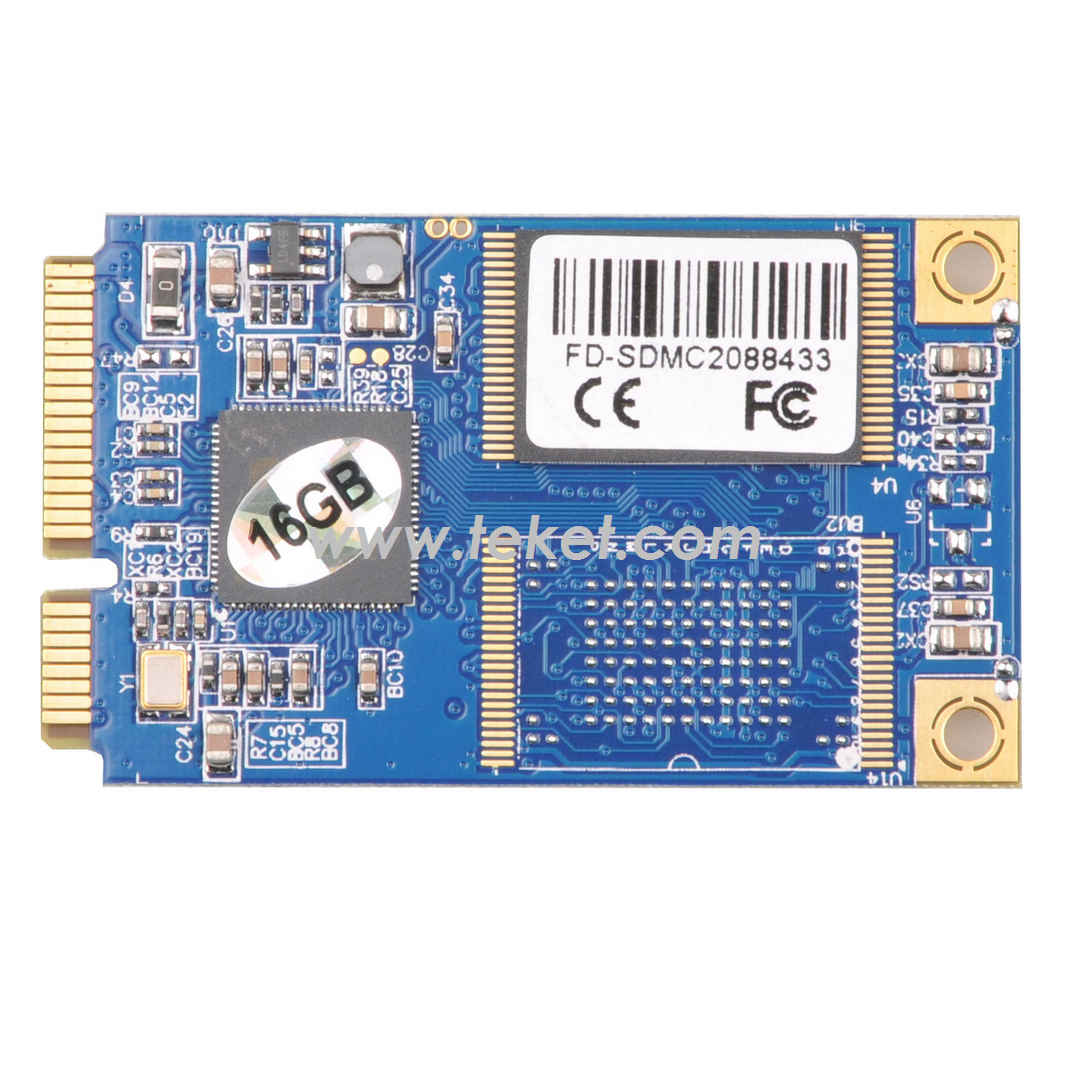

TEKET mSATA SSD, mini-pice interface, FS series

Pictures	The main specifications
	Manufacturers: TEKET Product Name: MSATA-XXXM Interface: mSATA (SATA 3Gbps) Main controller: flash type: MLC Capacity: Maximum sequential read: Maximum sequential write: Maximum random 4K write: ECC protection: yes Power off data protection: no Intelligent block management: yes Search time: 100ms TRIM support: yes Weight: 6g Start-up temperature: 0, 70 degrees Storage Temperature: -45,+85 degrees Electricity consumption: 1.7w, 0.5w standby Quality guarantee period: three years Model: MSATA-004M MSATA-008M MSATA-016M MSATA-032M MSATA-064M

MSATA 2.0 M2 SSD

model	.	M2 4G 8G 16G 32G 64G
Gerneral	Interface	SATAII/3.0 Gbps
.	Dimensions	50.95 x 30 x 3.6mm
.	Capacity	60GB/120GB/240GB/480GB
Storage Media	.	MLC NAND Flash
Performance	Sustained Read	up to 48MB/s,120MB/s,160MB/s,200MB/s,200MB/s
.	Sustained Write	up to 9MB/s,18MB/s,19MB/s,40MB/s,60MB/s
.	4K random I/O read	N/A
.	4K random I/O write	N/A
Power Consumption	input Voltage	3V
.	Idle	0.2w
.	Active	1w(4G,8G,16G),1.5w(32G,64G)
Reliability& Endurance	Wear-Leveling	Dynamic and static wear-leveling
.	Data Retention	10years at 26oC
.	MTBF	>2,000,000hours
.	Bad Block Management	Auto Bad Block Management in system
.	ECC	Supports BCH ECC 72bits in 1K bytes
Warranty	Time limit	3years
Environment	Operating Temperature	0 - +70℃
.	Storage Temperature	-40 - +100℃
.	Shock	1000G
.	Vibration	15G
.	Ambient Humidity	5%-95%
Available	.	YES,No EOL
Testing OS	.	WindowsXP SP2
Testing Platform	.	Mainboard:ASUS B75M-A;CPU:G1620 2.7Ghz;DRAM:DDR3 2GB
Testing Software	.	CrystalDiskMark 3.01 x64

(Note:Electrical specifications and weight will vary with different capacity of products.)

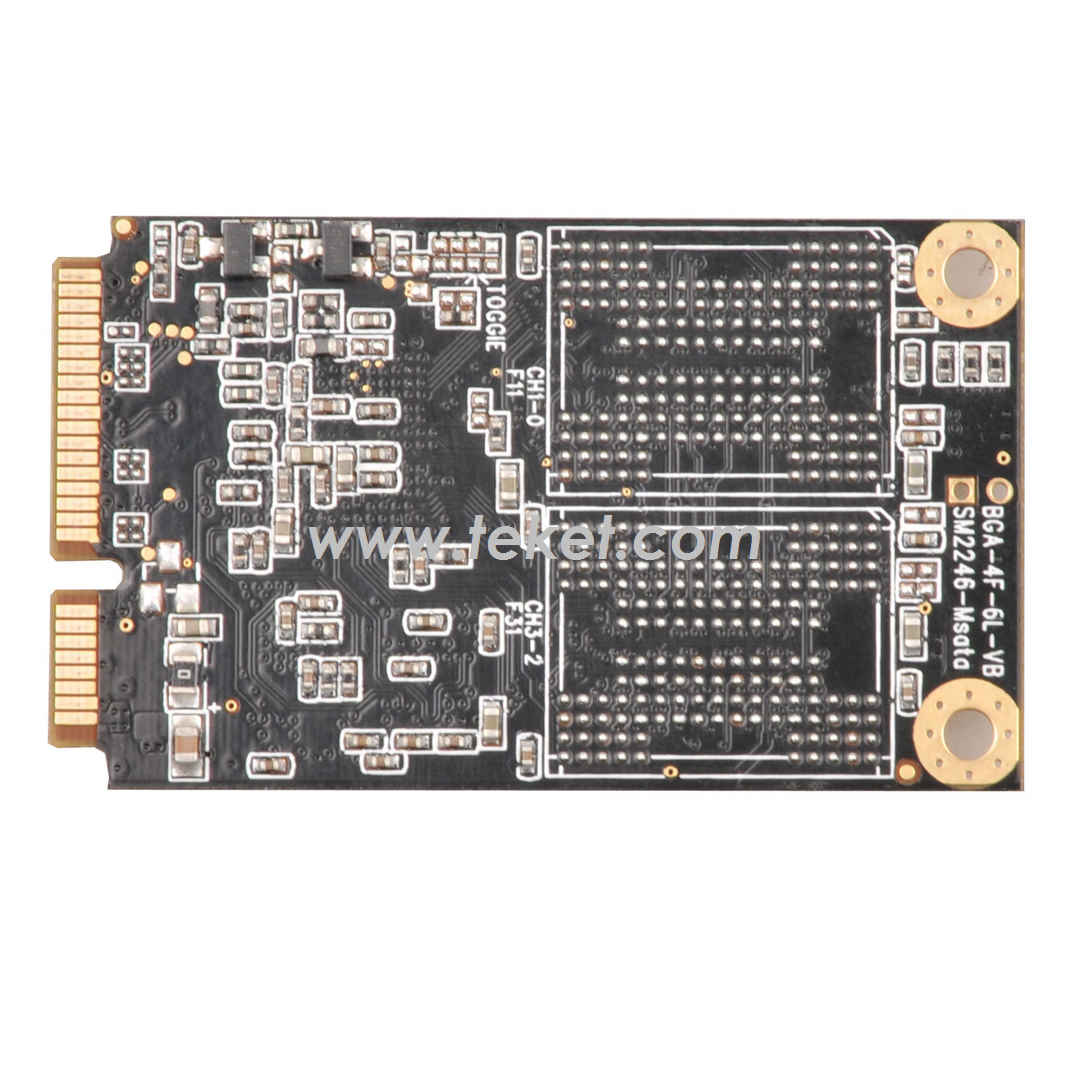

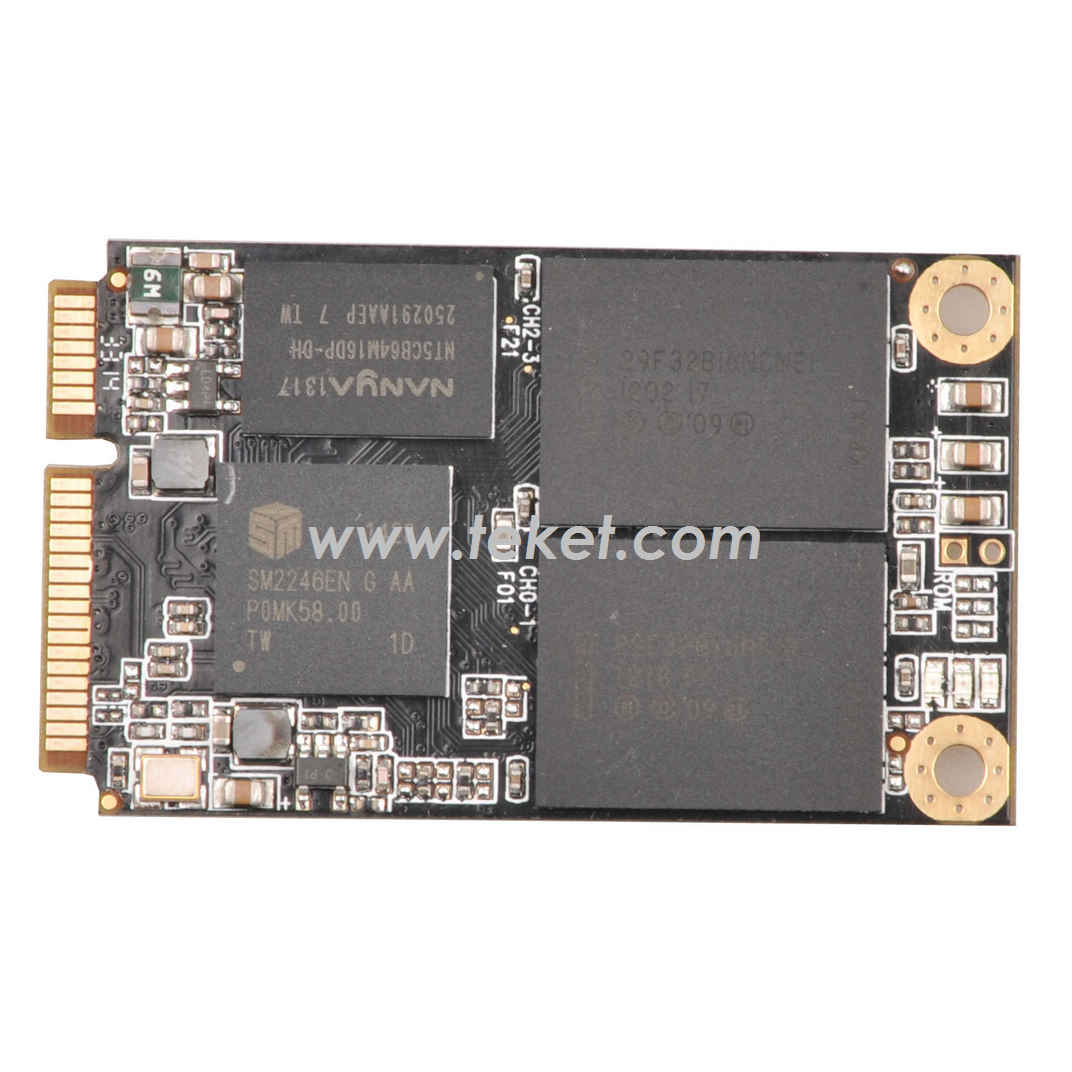

TEKET mSATA SSD, mini-pice interface, mSATA 3.0 SSD series

Pictures	The main specifications
	Manufacturers: TEKET Product Name: MSATA3-XXXM Interface: mSATA (SATA 6Gbps) Main controller: flash type: MLC Capacity: 64GB(60GB),128GB(120GB),256GB(240GB),512GB(480GB) Maximum sequential read: Maximum sequential write: Maximum random 4K write: ECC protection: yes Power off data protection: no Intelligent block management: yes Search time: 100ms TRIM support: yes Weight: 6g Start-up temperature: 0, 70 degrees Storage Temperature: -45,+85 degrees Electricity consumption: 1.7w, 0.5w standby Quality guarantee period: three years Model: MSATA3-064M 64GB or 60GB MSATA3-128M 128GB or 120GB MSATA3-256M 256GB or 240GB MSATA3-512M 512GB or 480GB

MSATA 3.0 M860(M3) SSD

model	.	M860(M3) 60G 120G 240G 480G
Gerneral	Interface	SATAIII/6.0 Gbps
.	Dimensions	50.95 x 30 x 3.6mm
.	Capacity	60GB/120GB/240GB/480GB
Storage Media	.	MLC NAND Flash
Performance	Sustained Read	up to 500MB/s,520MB/s,530MB/s,530MB/s
.	Sustained Write	up to 85MB/s,140MB/s,285MB/s,350MB/s
.	4K random I/O read	6650,6600,6621,6621
.	4K random I/O write	17170,17000,18517,18517
Power Consumption	input Voltage	3.3V
.	Idle	0.2w
.	Active	1.8w
Reliability& Endurance	Wear-Leveling	Dynamic and static wear-leveling
.	Data Retention	10years at 26oC
.	MTBF	>2,000,000hours
.	Bad Block Management	Auto Bad Block Management in system
.	ECC	Supports BCH ECC 66bits in 1K bytes
Warranty	Time limit	3years
Environment	Operating Temperature	0 - +70℃
.	Storage Temperature	-40 - +100℃
.	Shock	1000G
.	Vibration	15G
.	Ambient Humidity	5%-95%
Available	.	YES,No EOL
Testing OS	.	Windows7 64bit
Testing Platform	.	Mainboard:ASUS B75M-A;CPU:G1620 2.7Ghz;DRAM:DDR3 2GB
Testing Software	.	CrystalDiskMark 3.01 x64
