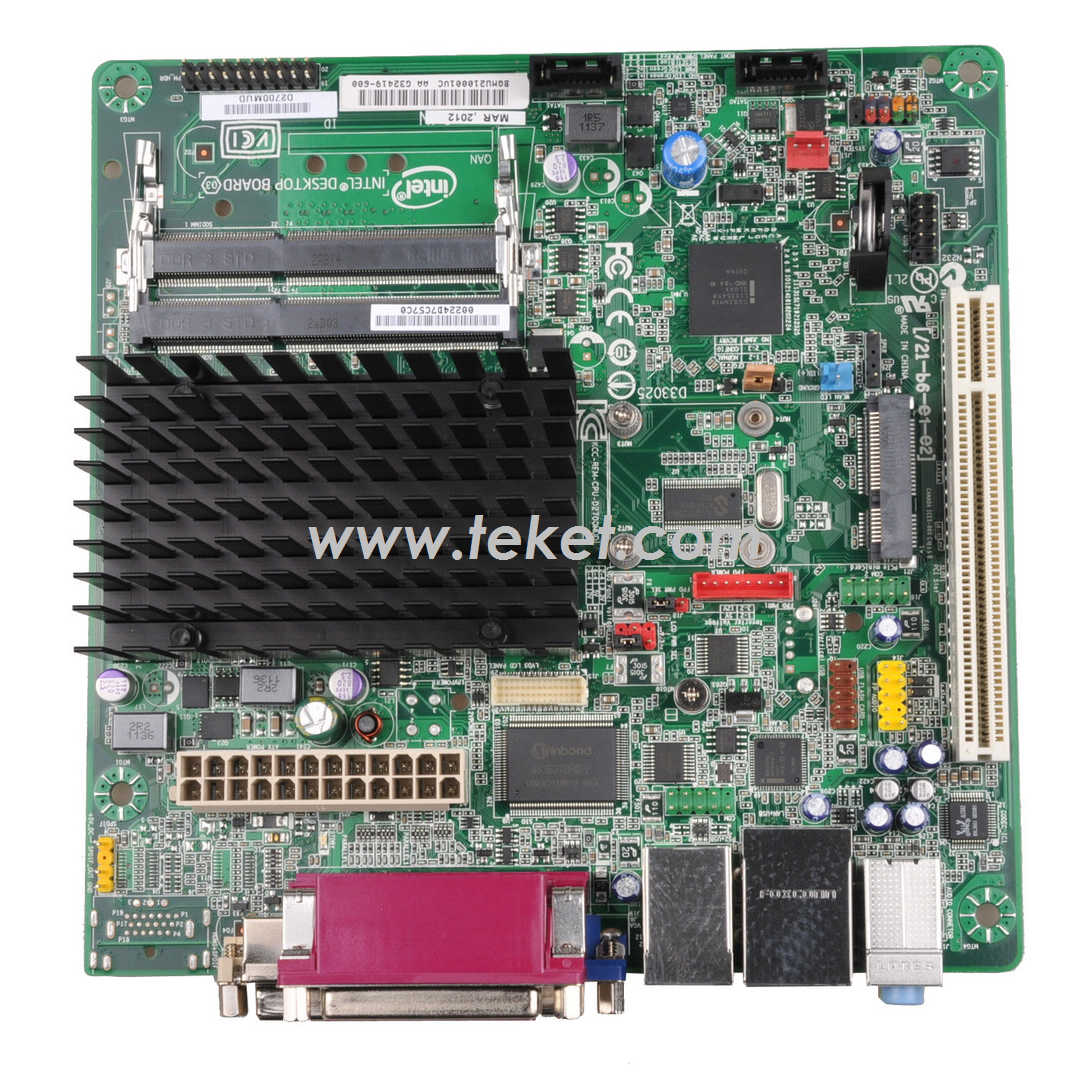

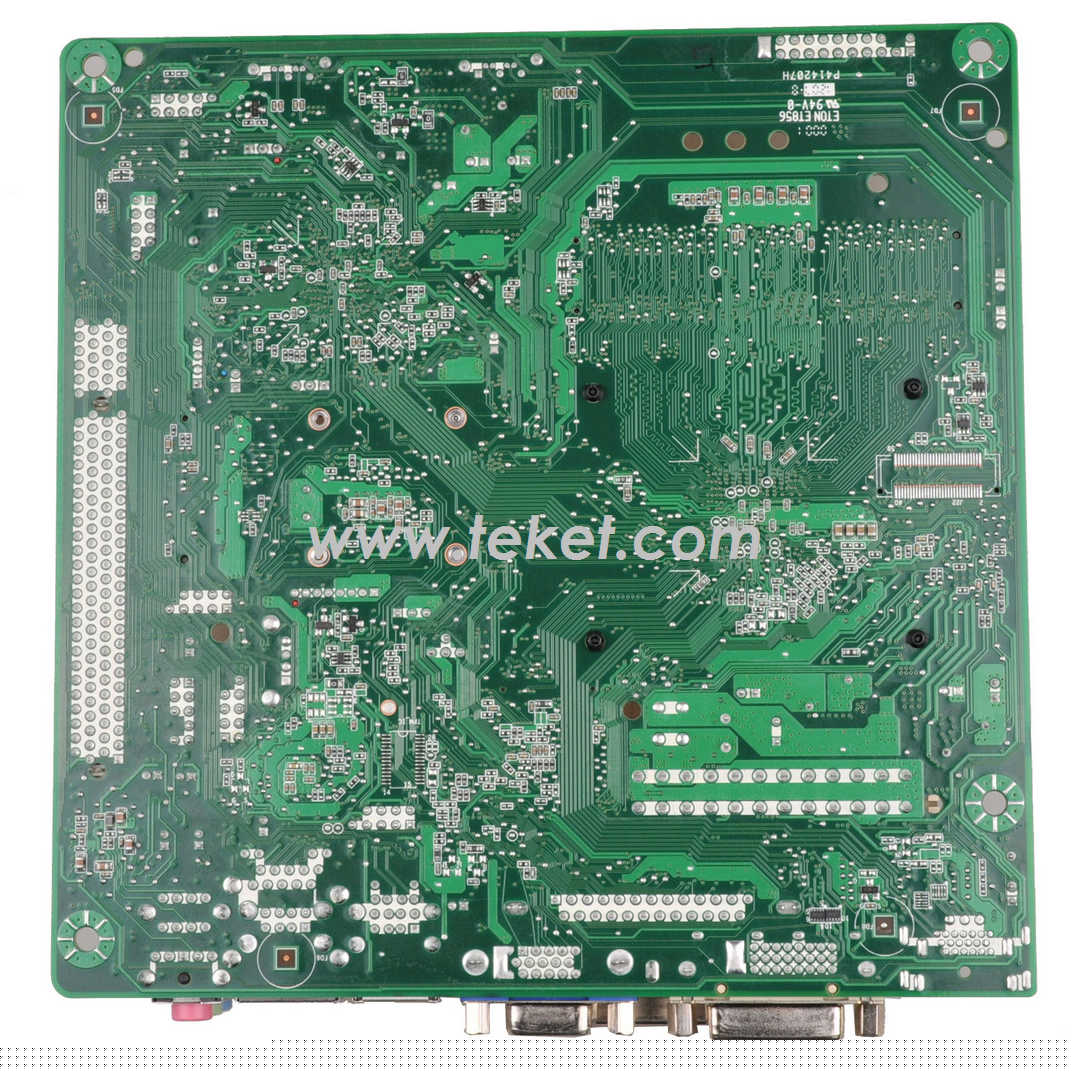

Intel Atom D2700 Mini-ITX Motherboard D270MUD

D2550MUD2 is the same as D2700MUD, only different CPU!
D2550MUD2 cpu 1.86Ghz
D2700MUD cpu 2.13Ghz

Digital Signage
1) Dual-core AtomTM with & without Hyper-Threading
2) DVI-I for full dual-independent display
3) 2 serial ports headers for multiple peripherals
4) Boards are suitable for other devices; digital signage,ATM, Kiosk, POS, etc.

Intel Orginal ATOM Board D270MUD Digital Signage
1),D2700 fastest atom dual-core processor with hyper-threading 2.13GHz
2),NM10 Express Chipset,Graphics Media Accelerator 3650, high-definition video playback
3),Video: DVI-I for full dual-independent display with VGA & Digital DVI ports
4),2 serial ports headers for multiple peripherals such as Digital Signage, ATM, Kiosk, POS etc.
5),passive heatsink thermal solution, fanless, quiet and low-power small form factor
6),Two SO-DIMM slots for 1066 MHz DDR3 single-channel memory support up to 4GB
7),10/100/1000 integrated Intel LAN, best compatibility
8),2 USB 2.0 ports (back panel), 3 USB 2.0 ports (internal)
9),Two Serial ATA 3.0 Gb/s ports, PS/2 port (keyboard or mouse)
10),Two Serial headers (internal), One Parallel port (back panel)
12),One PCI* Conventional Bus Connector,One PCI Express* Mini Card
BLKD2700MUD Outer Packing: 5.570kg,10pcs/ctn,625x220x230(mm)

http://www.intel.com/content/www/us/en/motherboards/desktop-motherboards/desktop-board-d2700mud.html?wapkw=Intel Desktop Board D2700MUD

Intel? Desktop Board D2700MUD
Tagged AsIntel? Desktop Board D2700MUD

Intel® Desktop Board D2700MUD is integrated with the new Intel® Atom™ processor D2700 and the Intel® NM10 Express Chipset to offer a desktop computer system that supports dual independent display capability with VGA & Digital DVI ports. The board also features a 10/100/1000 integrated Intel® LAN and Intel® High Definition Audio (Intel® HD Audio).

Intel® Desktop Board D2700MUD features a passive thermal solution that makes it suitable for a small form factor system that can fit perfectly with two display panels.

The Intel Desktop Board D2700MU features the new Intel® Graphics Media Accelerator 3650, which supports high-definition video playback via the VGA and Digital DVI graphic ports.

Features and configurations
Form factor
Mini-ITX / Micro-ATX compatible (170mm X 170mm)

AA# (Altered Assembly)
BOX/BLKD2700MUD: G23419-XXX

BIOS ID string
MUCDT10N.86A with Intel Fast Boot Technology

Processor
At product launch, this Intel? Desktop Board D2700MUD supports:

Intel? Atom processor D2700 with passive heatsinkView all compatible Intel? processor numbers
Memory
Two SO-DIMM slots for 1066 MHz DDR3 single-channel memorySupport for up to 4 GB of system memory
Chipset
Intel? NM10 Express Chipset
Audio
Intel? High Definition Audio (Intel? HD Audio) subsystem in the following configuration:

Six (5.1) channel Intel? HD Audio
Front panel mic/headphone header (2x5)

LAN support
Integrated Intel? 10/100/1000 network connection

Peripheral interfaces
Two USB 2.0 ports (back panel)Three USB 2.0 ports (internal)
Two Serial ATA 3.0 Gb/s portsPS/2 port (keyboard or mouse)
Two Serial headers (internal)
One Parallel port (back panel)

Expansion capabilities
One PCI* Conventional Bus ConnectorOne PCI Express* Mini Card

Video
VGA & Digital DVI ports

Warranty
3-year warranty (BOX/BLK)
Standard Warranty Replacement (SWR)

Net Weight: 355g
Inner Packing:
Outer Packing: 5.570kg,10pcs/ctn,625x220x230(mm)
