-->> Asrock Embedded ATOM CedarView D2550 MINI-ITX motherboard with Intel Graphics UTX-110 <<--

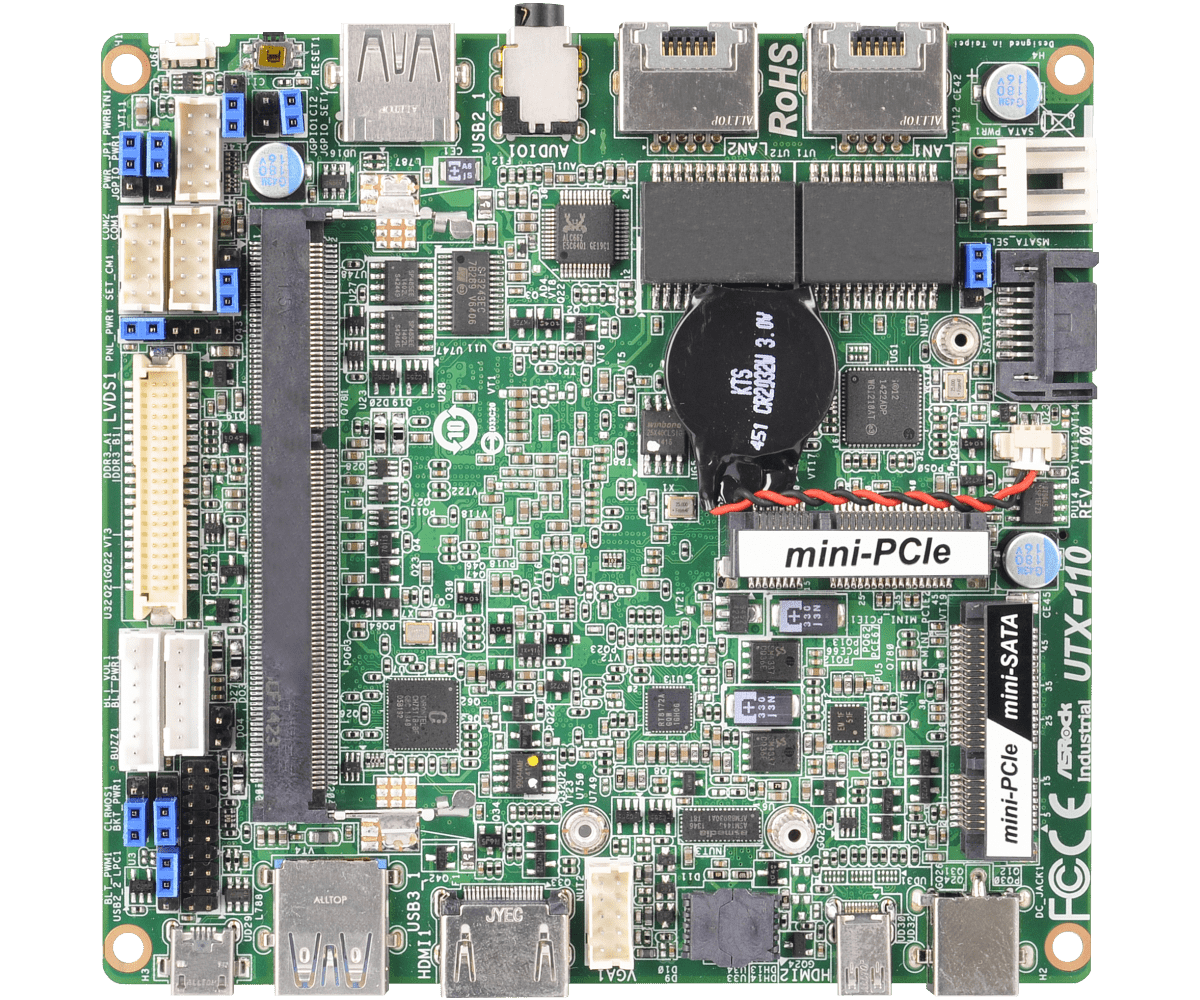

UTX-110
Intel? Atom? Baytrail-i Processor
Integrated Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
Supports Single Channel DDR3L 1066/1333MHz, 1 x SO-DIMM, up to 4/8GB system memory
2 x HDMI,1 x Dual Channel 24-bit LVDS
1 xUSB 3.0, 4 x USB 2.0, 1 x SATA2
1 x mini-PCIe(1 x Half size), 1 x mSATA (Full size, co-lay with mini-PCIe function)
Gigabit LAN : 2 x Intel? 210 x 1
12 V DC-in

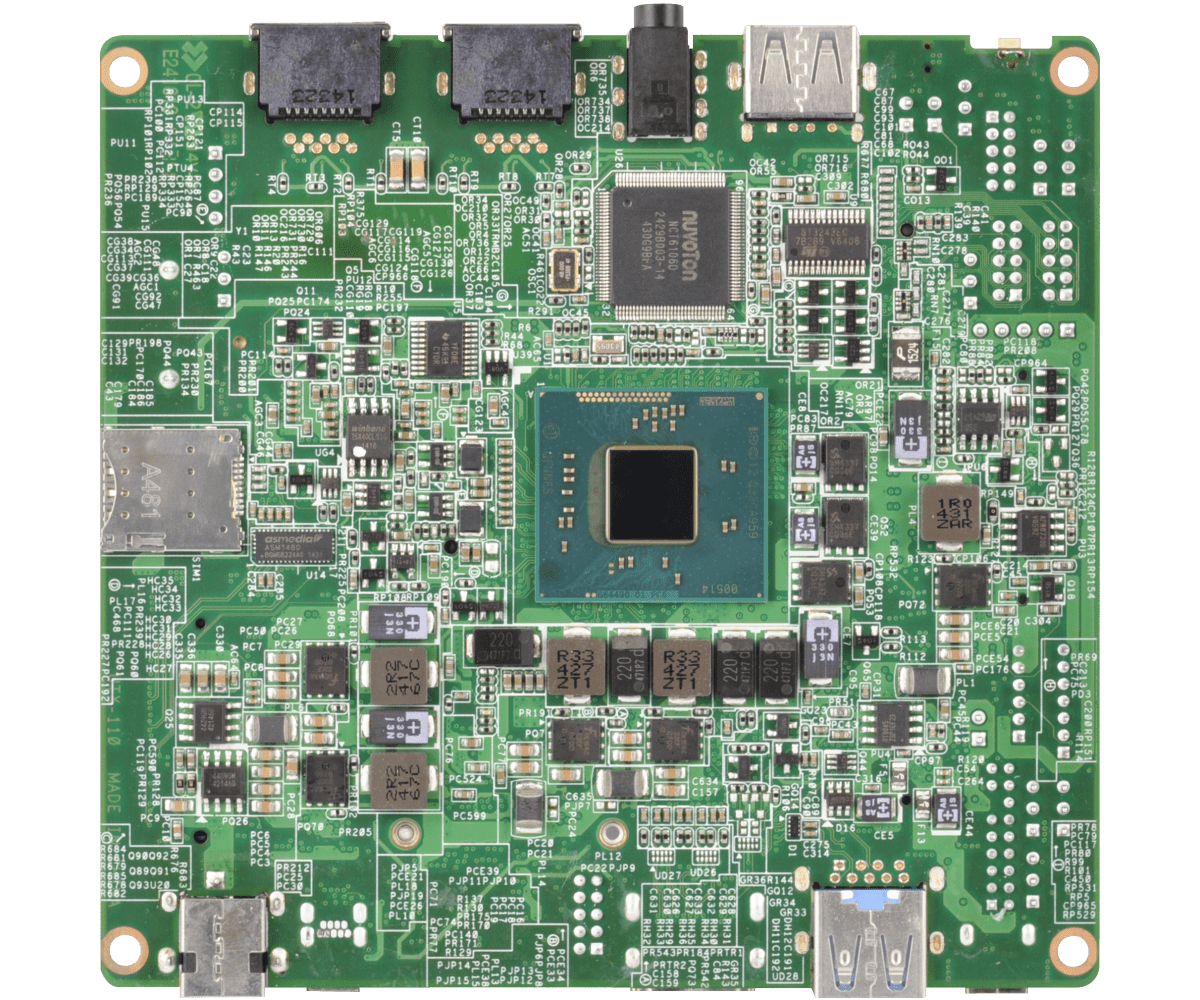

Soc Buttom up design



Form Factor
Dimensions - 111.76 x 116.84 mm(10 layer)
Processor System
CPU
- Intel? new Atom? Baytrail-I
- Supports Hyper-Threading Technology
- Default E3826 Dual core processor
- Optional E3845/3815 Quad/Single Core Processor
Core Number - (By CPU, Max 4)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - (By CPU)
BIOS - UEFI
Expansion Slot
PCIe - 0
PCI - 0
Mini-PCIe - 1 x full size co-lay with mSATA
mSATA - 1 (Full Size)
SIM - 1
CFast Card Socket - 0
Memory
Technology - Single Channel DDR3L 1066 / 1333 MHz SDRAM
Max. - 4/8GB
Socket - 1 x SO-DIMM
Graphics
Controller - Intel? Gen7 Intel? Graphics DX 11*, OGL3.2
VRAM - Shared Memory
VGA - Supports max. resolution 1920X1200
DVI - No
LVDS - Dual channel 24-bit, max resolution 1920 x 1200@60Hz
HDMI - Supports HDMI, max resolution 1920 x 1200
DisplayPort - No
MultiDisplay - Yes (Dual Display)
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - 2 x Intel? 210
Connector - 2 x RJ45
Storage
Max Data Transfer Rate - SATA2 (3.0Gb/s)

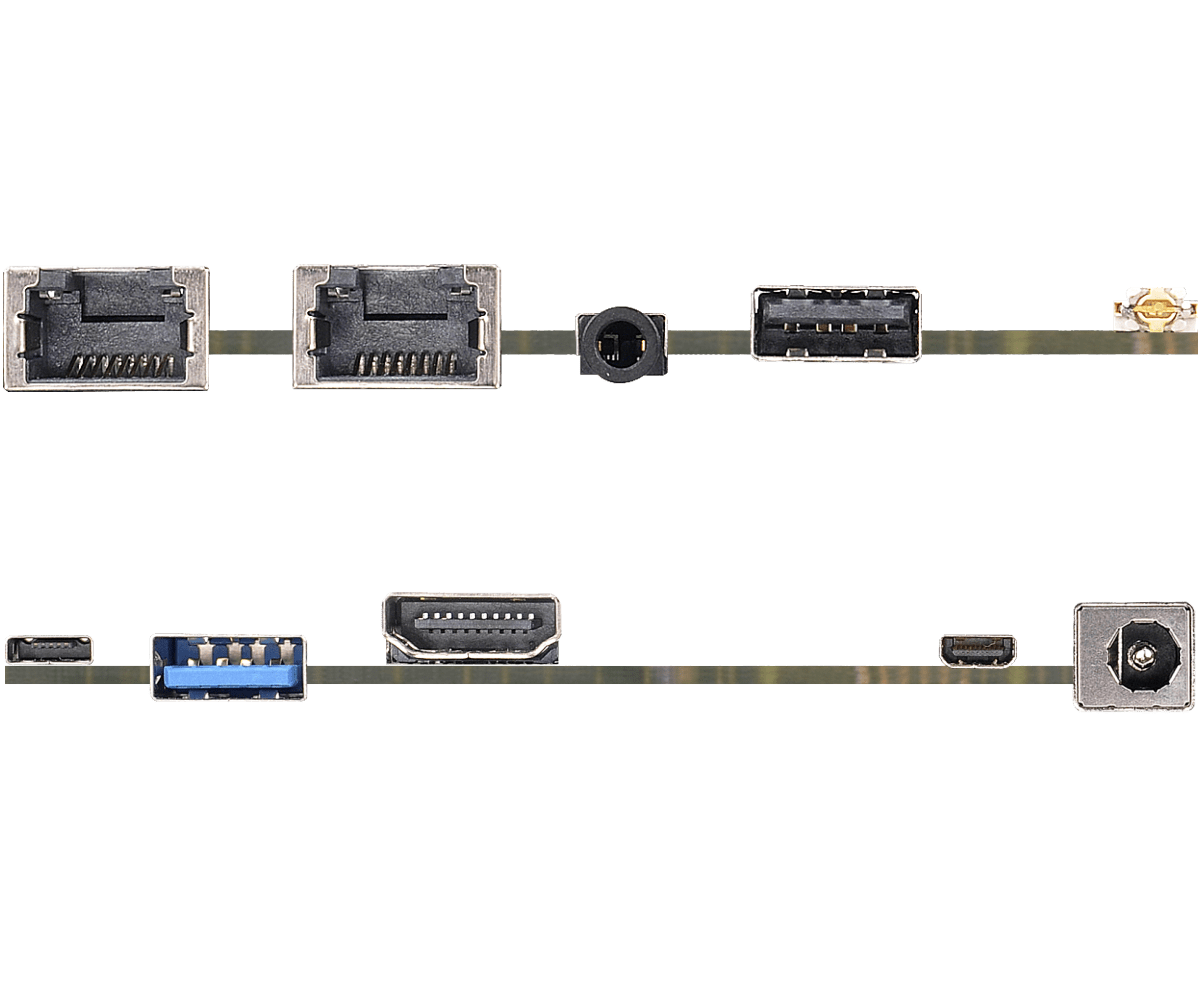

Rear I/O
VGA - 0
DVI - 0
HDMI - 2 (1 x HDMI, 1 x Micro HDMI)
DisplayPort - 0
Ethernet - 2
USB - 1 x USB 3.0 Compliant , 1 x USB 2.0 Compliant 1 x Micro USB 2.0 SMT type connector
Audio - 1 ( Line out/Mic out)
Serial - 0
eSATA - 0
PS2 - 0
Internal Connector
USB - 0
LVDS / inverter - 1/1
VGA - 1 (Pin heater 2.0 mm Pitch)
Serial - (RS-232/422/485 x 1. RS232 x 1) Pin heater 2.0 mm pitch COM1 Pin9 (+5V & +12V)
SATA - 1 x SATA2 (3.0Gb/s)
mPCIe - 2 (full/Half size)
Parallel - 0
mSATA - 1
IrDA - 0
GPIO 8-bit - 4 x GPI + 4 x GPO Pin heater 2.0 mm pitch
SATA PWR Output Con - 1
Speaker Header - 1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2...255sec/min
Power Requirements
Input PWR - 12V DC Jack
Power On
AT/ATX Supported
- AT: Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature - 0oC – 60oC
Others
Ordering Information
- UTX-110P (90-PXG2P0-A0UAYZ, Gift package) : UTX-110 with Intel? Atom? E3845, 4 Cores, 1.91GHz, 10W, 2M
- UTX-110E (90-PXG2P1-A0UAYZ, Gift package) : UTX-110 with Intel? Atom? E3815, 1 Core, 1.46GHz, 5W, 512K
- UTX-111D (90-PXG2W0-A0UAYZ, Gift package) : UTX-111 with Intel? Celeron? J1900, 4 Cores, 2.0GHz, 10W, 2M
- UTX-111N (90-PXG2W1-A0UAYZ, Gift package) : UTX-111 with Intel? Celeron? N2930, 4 Cores, 1.83GHz, 7.5W, 2M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x COM cable
- 1 x SATA cable
- 1 x SATA power cable
- 1 x VGA cable
- 1 x Heatsink
- 2 x Screw for mini card
