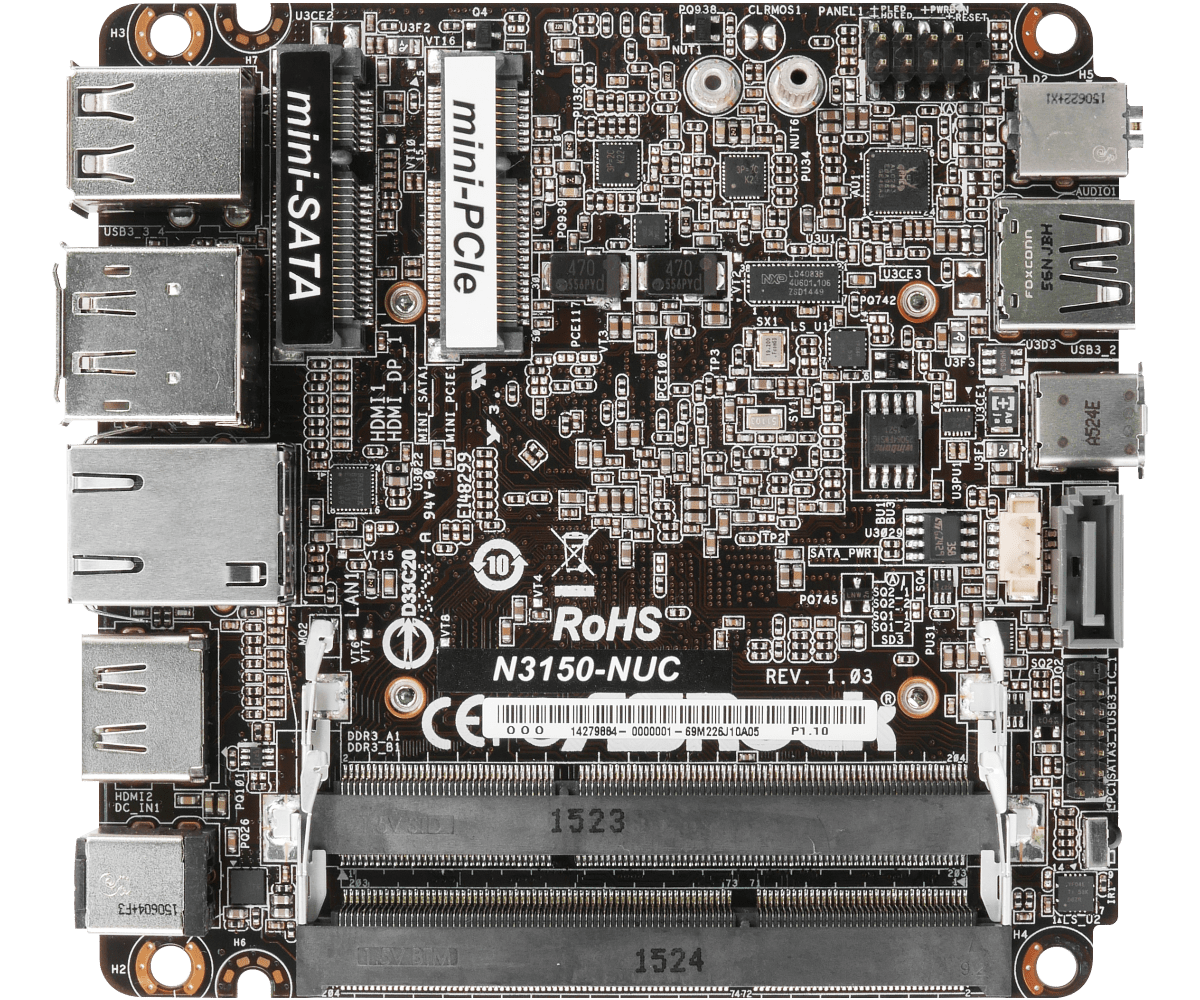

-->> Asrock Embedded NUC size 104x102mm NUC-N3150 <<--

NUC-N3150

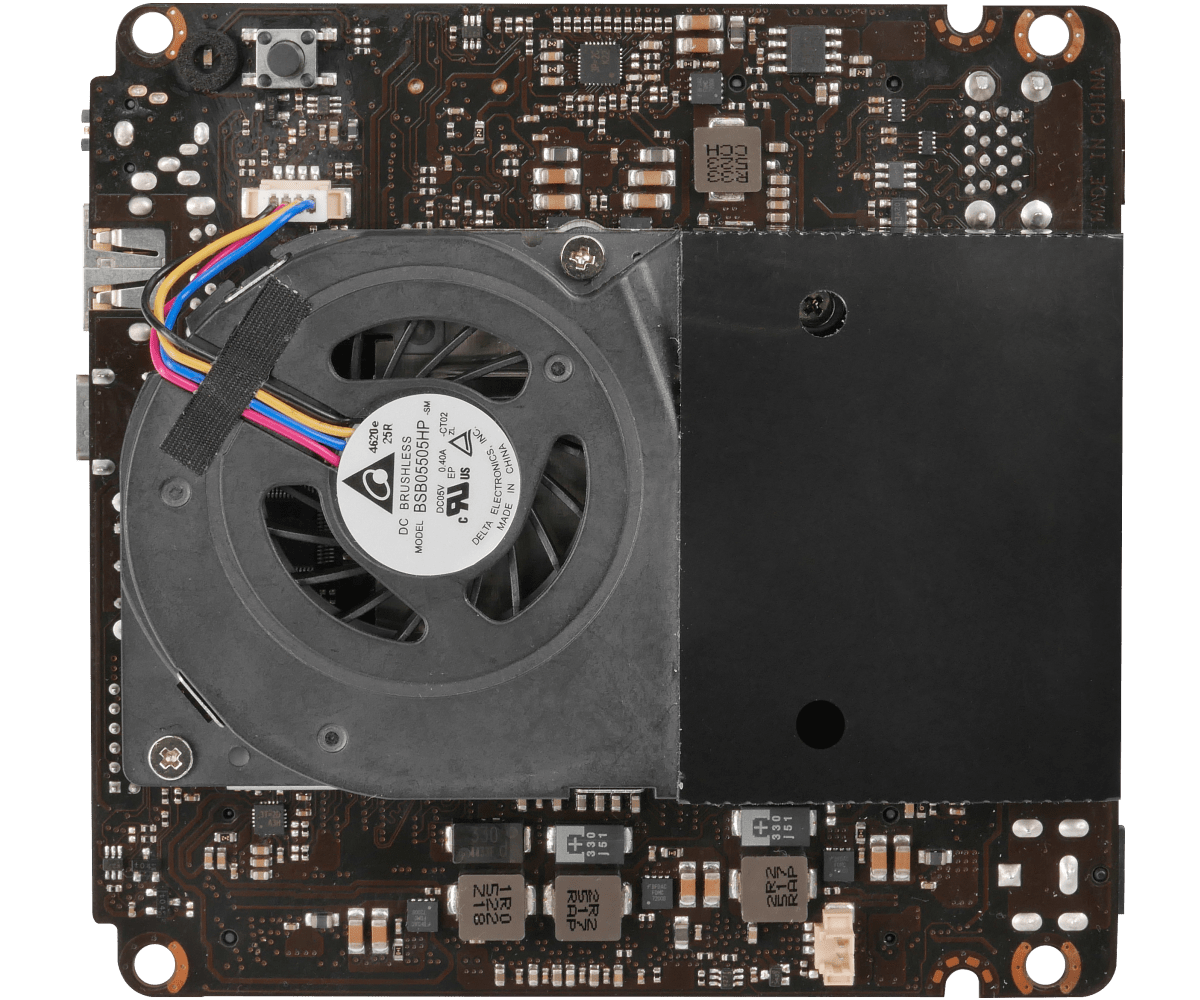

Intel? Braswell N3150 (Fan Design)
2 x HDMI, 1 x DisplayPort
1 x Giga LAN
4 x USB 3.0 (1 x Type C), 1 x Audio-out with MIC-In
1 x mSATA, 1 x Mini-PCIe
Triple display (HDMI+HDMI+DP),Support 4K Display and Playback



Form Factor
Dimensions - 4.09" x 4.02" (104 x 102mm)
Processor System
CPU
- Intel? Quad Core Braswell N3150(With FAN)
- Supports Hyper-Threading Technology
Core Number - 4
Max Speed - (By CPU)
L2 Cache - 2MB
Chipset - N/A
BIOS - UEFI
Expansion Slot PCIe
Mini-PCIe
- 1 (half size, supports PCIe x1 & USB)
mSATA - 1 (Only support SATA)
Memory
Technology - Dual Channel DDR3L 1066 / 1600 MHz SDRAM
Max. - 16 GB
Socket - 2 x SO-DIMM
Graphics
Controller - Intel? Gen8 Intel? Graphics DX 11*, OGL3.2
VRAM - share Memory
VGA - no
DVI - no
LVDS - no
HDMI - Supports HDMI 1.4a, max resolution 3840 x 2160@30Hz
DisplayPort - Supports DP 1.1a, max resolution 3840x2160@30Hz
MultiDisplay - Yes (Triple Display)
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- GbE LAN: 1x Realtek RTL 8111G
Connector - 1 x RJ45
Storage
Max Data Transfer Rate - SATA3 (6.0Gb/S)

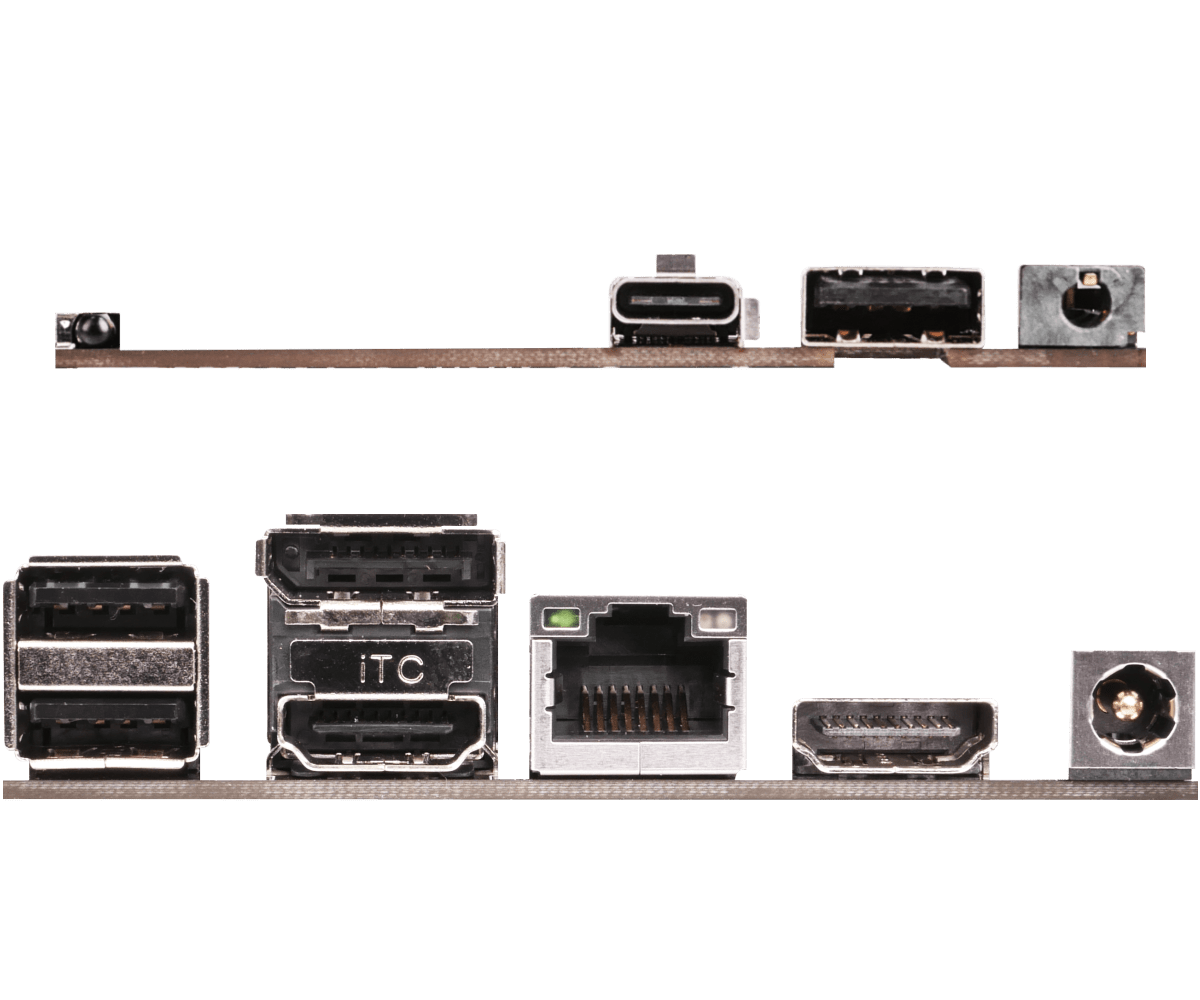

Rear I/O
VGA - 0
DVI - 0
HDMI - 2
DisplayPort - 1
Ethernet - 1
USB - 4 (3 x USB 3.0 compliant, 1 x USB 3.0 Type C)
Audio - 1 (Mic-in, Line-out)
Serial - 0
eSATA - 0
PS2 - 0
Internal Connector USB - 0
LVDS / inverter - 0
VGA - 0
Serial - 0
SATA - 1 x SATA3 (6.0Gb/s)
Parallel - 0
mSATA - 1
M.2 - 0
IrDA - 0
GPIO 8-bit - 0
SATA PWR Output Con - 1
Speaker Header - 0
Watchdog Timer
Output - 0
Interval - 0
Power Requirements
Input PWR - 12V DC-In (DC Jack)
Power On
ATX Supported - ATX: Press Button to PWR on after Power input ready
Environment
Temperature - 0oC – 60oC
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
