>>Your Current Position: Mini PC ZOTAC ZBOX Series MINI PC




-->> ZOTAC ZBOX-BI324 mini pc Celeron Dual Core N3060 1.6-2.48GHz with Intel HD Graphic HTPC <<--

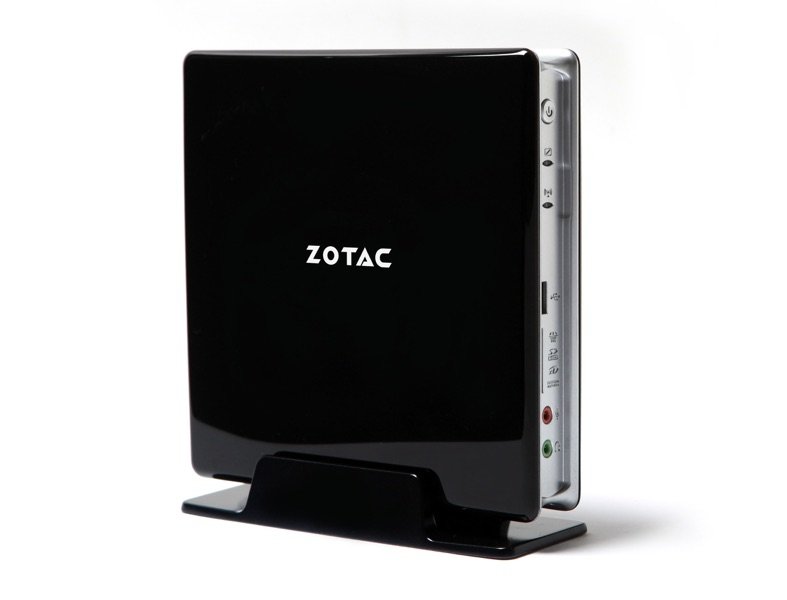

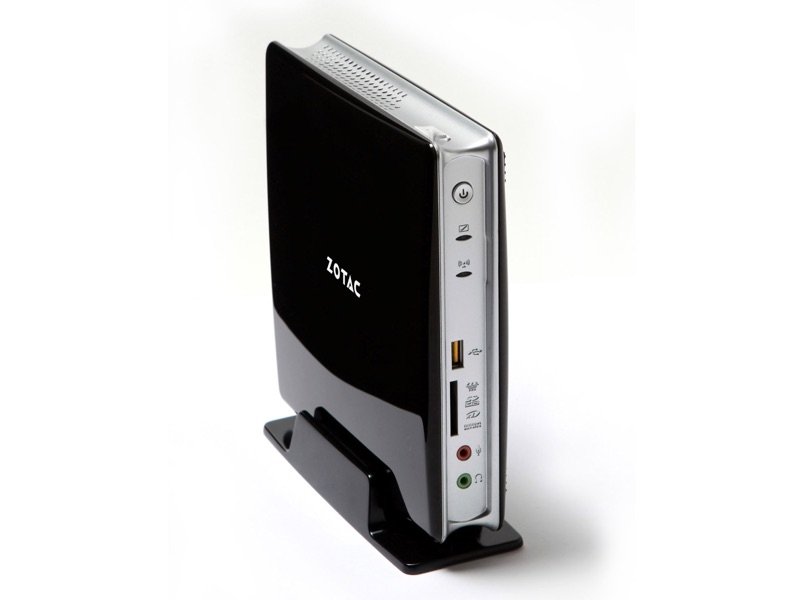

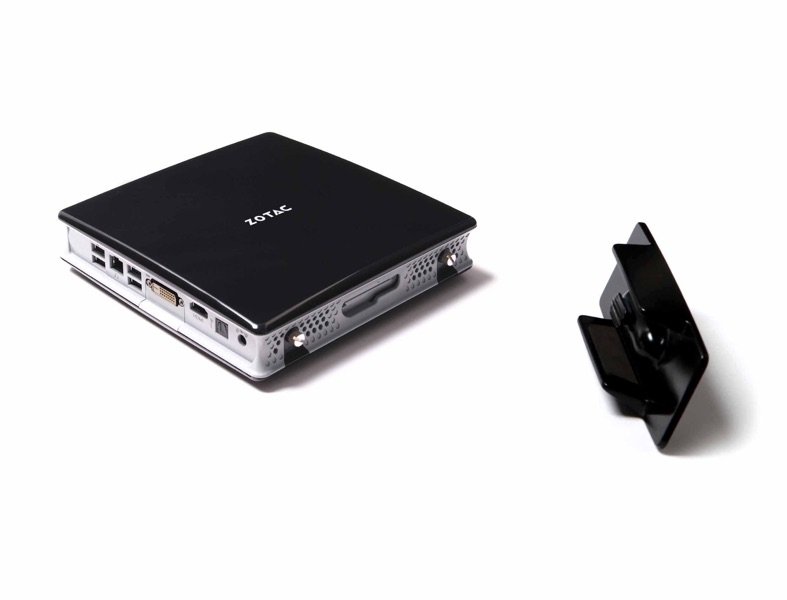

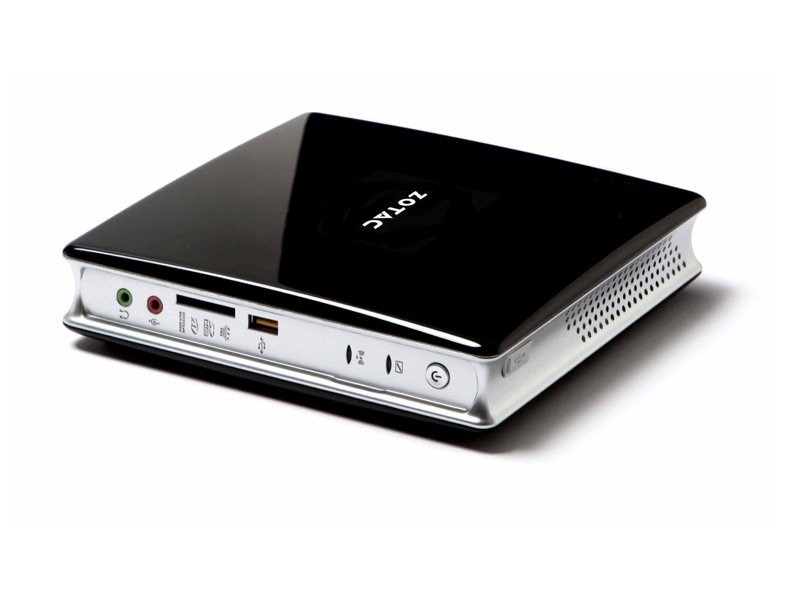

ZBOX BI324
ZBOX-BI324

ZBOX BI324 with Windows 10
ZBOX-BI324-W2B
System Memory 4GB DDR3L-1600 (8GB max)
M.2 32GB onboard M.2 SSD
Supported OS Windows 10 Home pre-installed (64-bit)
Available SKU
ZBOX-BI324-BE-W2B
ZBOX-BI324-U-W2B
ZBOX-BI324-J-W2B
ZBOX-BI324-BE-W3B
ZBOX-BI324-K-W4B

Enjoy a rich multimedia experience with energy eicient ZOTAC ZBOX BI324 mini-PC. Powered by the new Intel Braswell processor that trumps its predecessor with performance and power consumption, this Mini PC is the perfect desktop replacement.

The ZBOX BI324 stands no taller than a coffee maker and no wider than a toaster. It is perfect for daily activities such as web browsing, e-mails, productivity, and smooth HD entertainment.

Product Specifications
Computing System
Processor Intel N3060 dual-core 1.6GHz, up to 2.48GHz
Chipset Intel
System Memory 2 x 204-pin DDR3L-1600 SO-DIMM slots (max 8GB)
Graphics
Graphics Engine Intel HD Graphics
Video Output HDMI, DisplayPort, VGA
Storage
Hard Drive 1 x 2.5 inch SATA SSD/HDD slot
Mass Storage N/A
Optical Drive N/A
mSATA N/A
M.2 N/A
Card Reader 3-in-1 (SD/SDHC/SDXC) / USB 3.0 port Combo

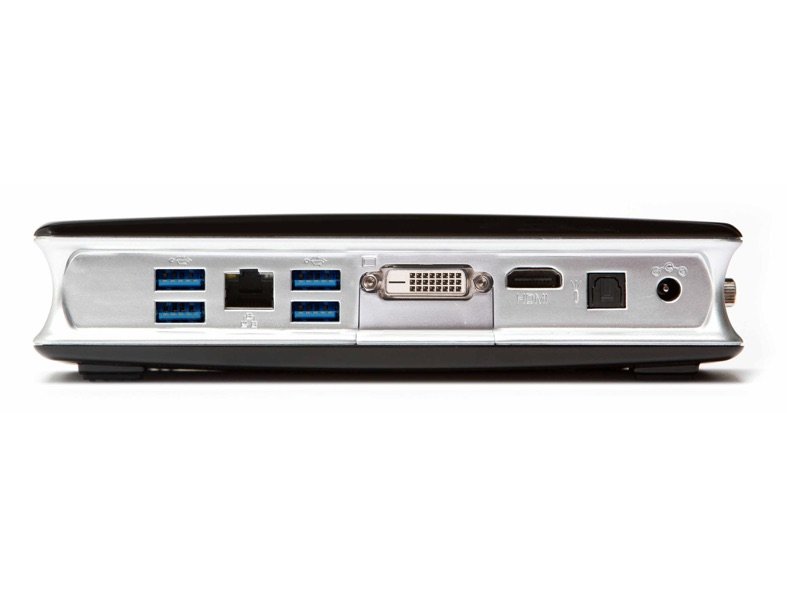

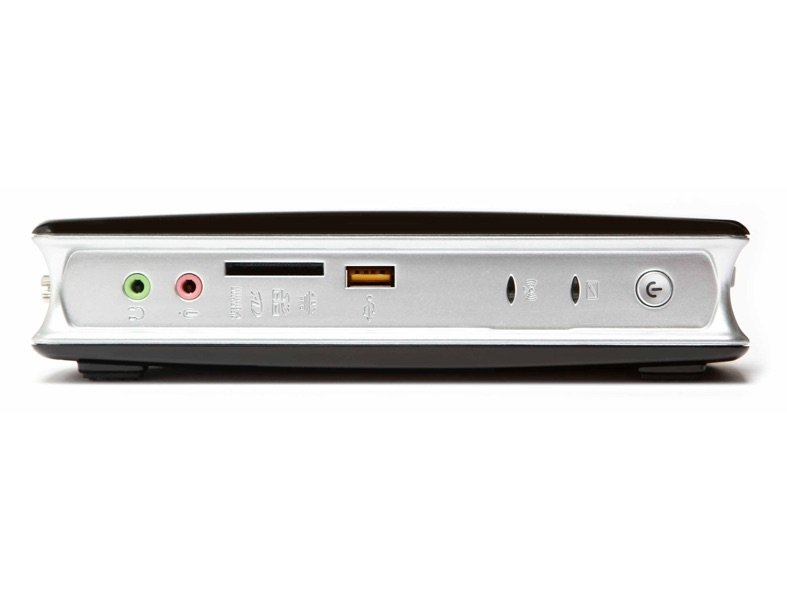

I/O Ports
Audio Stereo output
Loss-less Bitstream via HDMI
USB Port
1 x USB 3.0 type-C (front)
3 x USB 3.0 (front, back)
1 x USB 2.0 (top)
LAN 10/100/1000Mbps
Antenna N/A
Wifi N/A
Bluetooth N/A
Legacy I/O N/A
CIR Infrared Port N/A
Thunderbolt N/A
USB N/A
IDE N/A
VGA N/A
Mechanical
Kensington Lock N/A
LED Indicators Power, HDD
Power Supply AC Adapter O/P: DC 19V/65W
Cooling system Fan + Heatsink
ZBOX Dimensions 188mm x 188mm x 44mm
Case Mounting None
Miscellaneous
Supported OS Windows 7, 8.1 (64-bit), Windows 10 (32/64-bit)

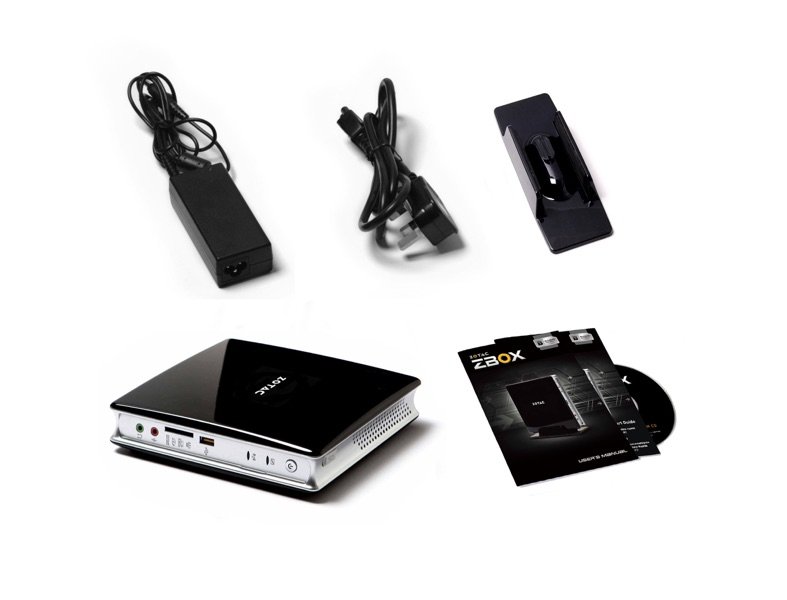

Accessories
1 x AC adapter
1 x Power cord
1 x Warranty card
1 x User manual
1 x Quick Install Guide
1 x Driver disc
Available SKU
ZBOX-BI324-BE
ZBOX-BI324-U
ZBOX-BI324-J
ZBOX-BI




optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5
2.4G Wireless Keyboard with Touchpad Mouse K9
