>>Your Current Position: Mini PC Industal PC Series MINI PC

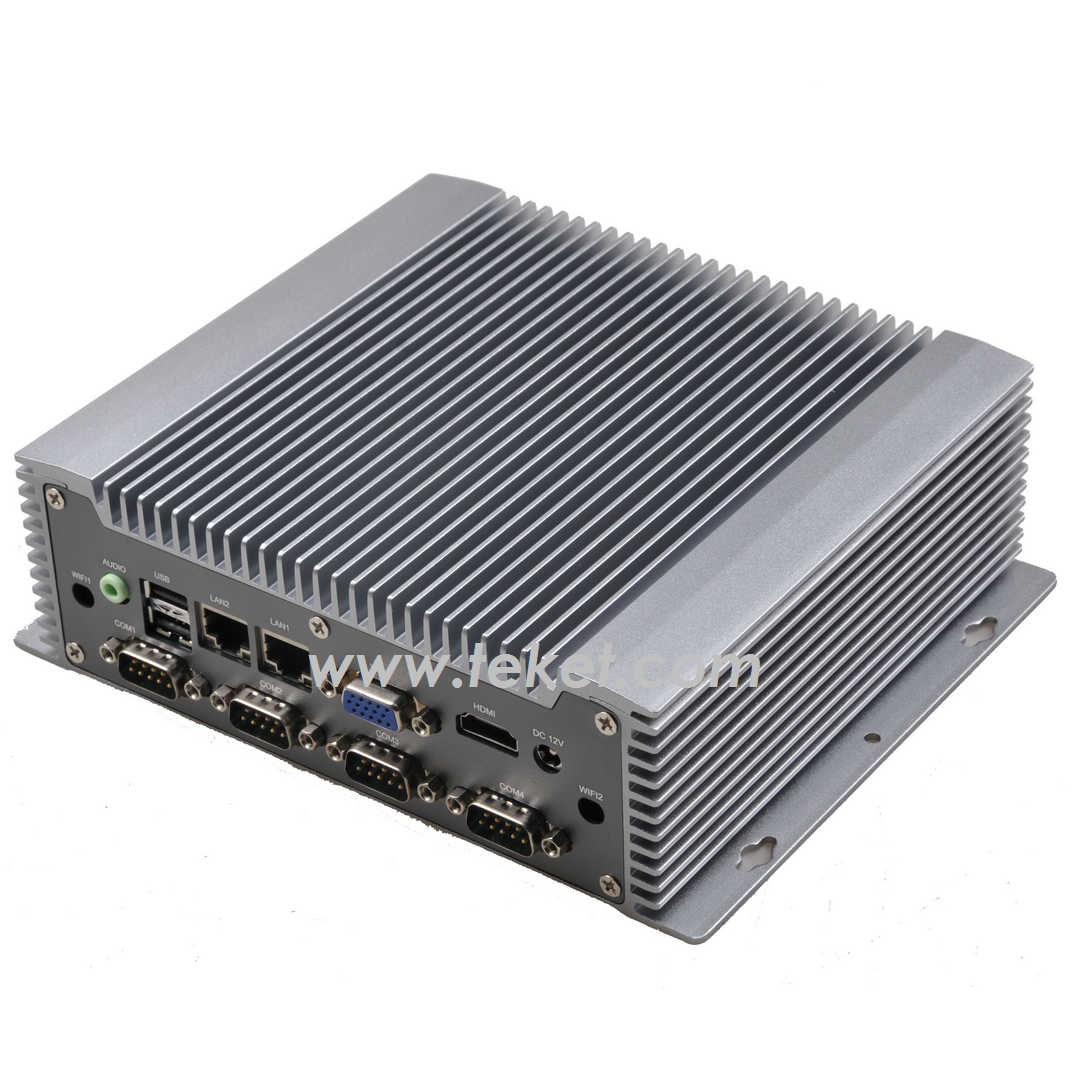

3.5" fanless industrial pc Celeron 1037U or I3-3217U with 6*COM HDMI WIFI

Model: N80-C37ECM (or N80-C1037ECM
Model: N80-I3ECM (or N80-I33217ECM)


Intel Atom SBC 3.5" Motherboard SBC35 Celeron 1037U or I3-3217U
For Industral

1),This board have two mini pcie slot, one full height for msata ssd (for example teket msata-008m), one half height for wifi card (for example intel 3945abg), Our company can provide msata ssd and wifi card too.

2),This baord support 1080p playback, 12v dc in, support fanless, support audio interface, two lan ports, x86-based platform support all kinds of OS included Ubuntu. this is standard intel platform and this platform have good compatibility. industrail grade.




Intel? Celeron? Processor 1037U (2M Cache, 1.80 GHz) Q1'13
Launch Date Q1'13
Processor Number 1037U
# of Cores 2
# of Threads 2
Clock Speed 1.8 GHz
Intel? Smart Cache 2 MB
DMI 5 GT/s
Instruction Set 64-bit
Instruction Set Extensions SSE4.1, 4.2
Embedded Options Available No
Lithography 22 nm
Max TDP 17 W
Processor Graphics ? Intel? HD Graphics

Intel® Core™ i3-3217U Processor (3M Cache, 1.80 GHz)
Launch Date Q2'12
Processor Number i3-3217U
Intel® Smart Cache 3 MB
# of Cores 2
# of Threads 4
Processor Base Frequency 1.8 GHz
TDP 17 W
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3/L/-RS 1333/1600
Processor Graphics ‡ Intel® HD Graphics 4000
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Output eDP/DP/HDMI/SDVO/CRT

CPU Integrated Intel® Celeron 1037U 1.8GHz dual-core CPU TDP17W
Graphics Intel® HD Core graphics,Providing VAG、HDMI display output
System Memory Onboard DDR3 2GB high speed memory,the memory onboard max up to 4GB

CPU Integrated Intel® I3-3217UU 1.8GHz dual-core CPU TDP17W
Graphics Intel® HD 4000 Core graphics,Providing VAG、HDMI display output
System Memory Onboard DDR3 4GB high speed memory,the memory onboard max up to 4GB

Expansion Slot 1* Mini-PCIE,supports WIFI/3G module
Storage 1* 2.5" SATA
1* MSATA,supports SSD、WIFI
Network Integrated 2*Intel Gigabit LAN chip,Supports Wake-on-LAN

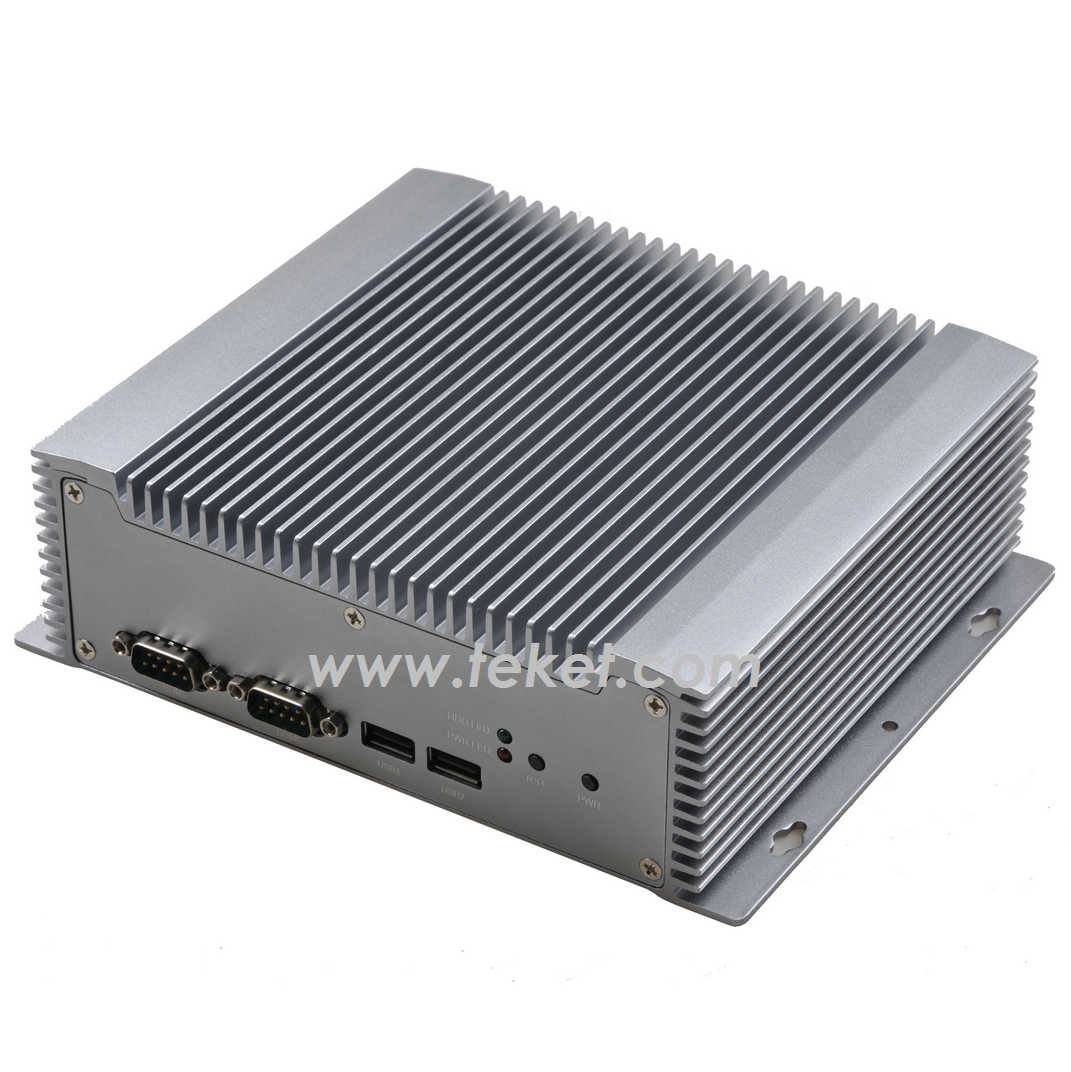

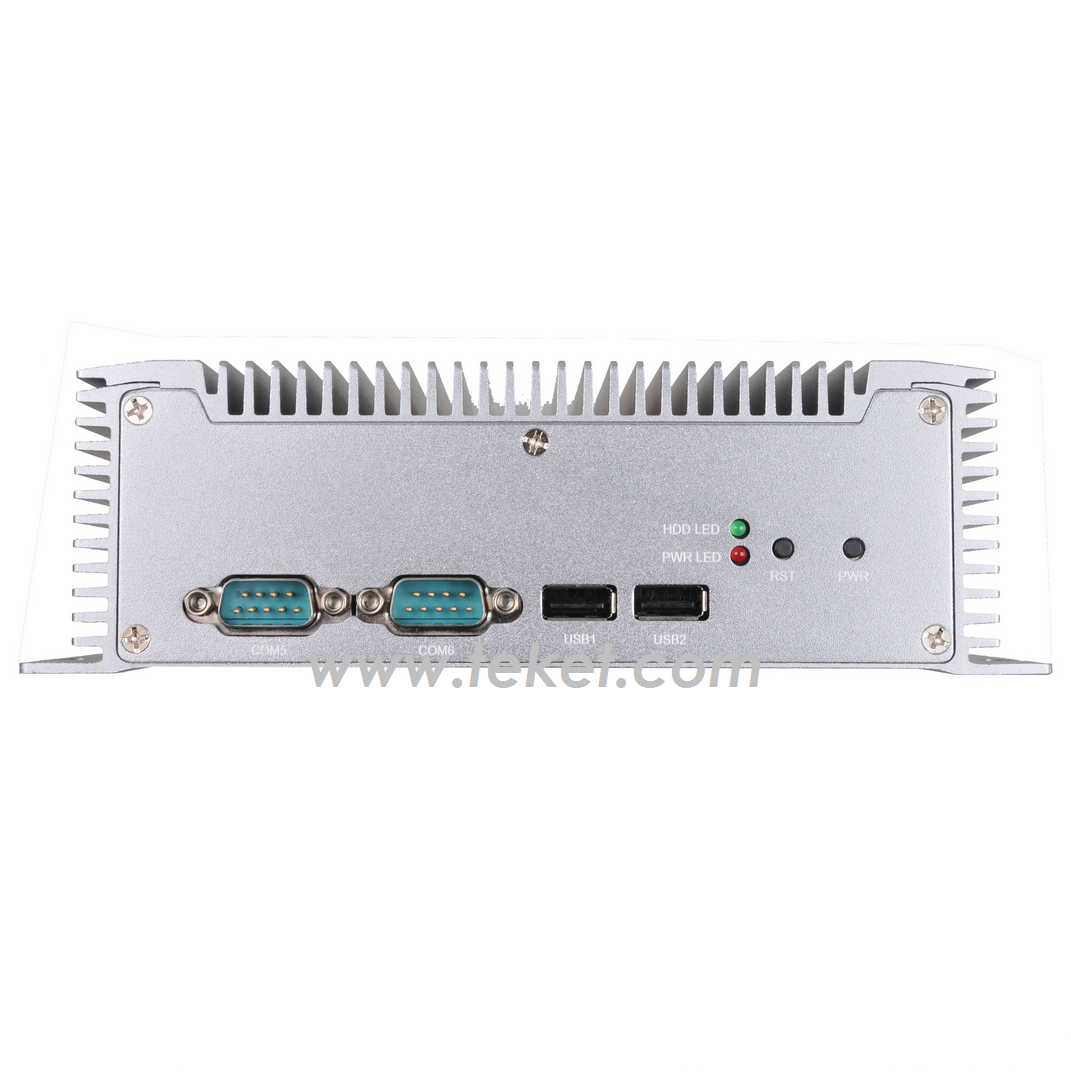

Front Panel Port 2* COM
2* USB 2.0
1* POWER、RESET switch
1* POWERHDD、HDDLED

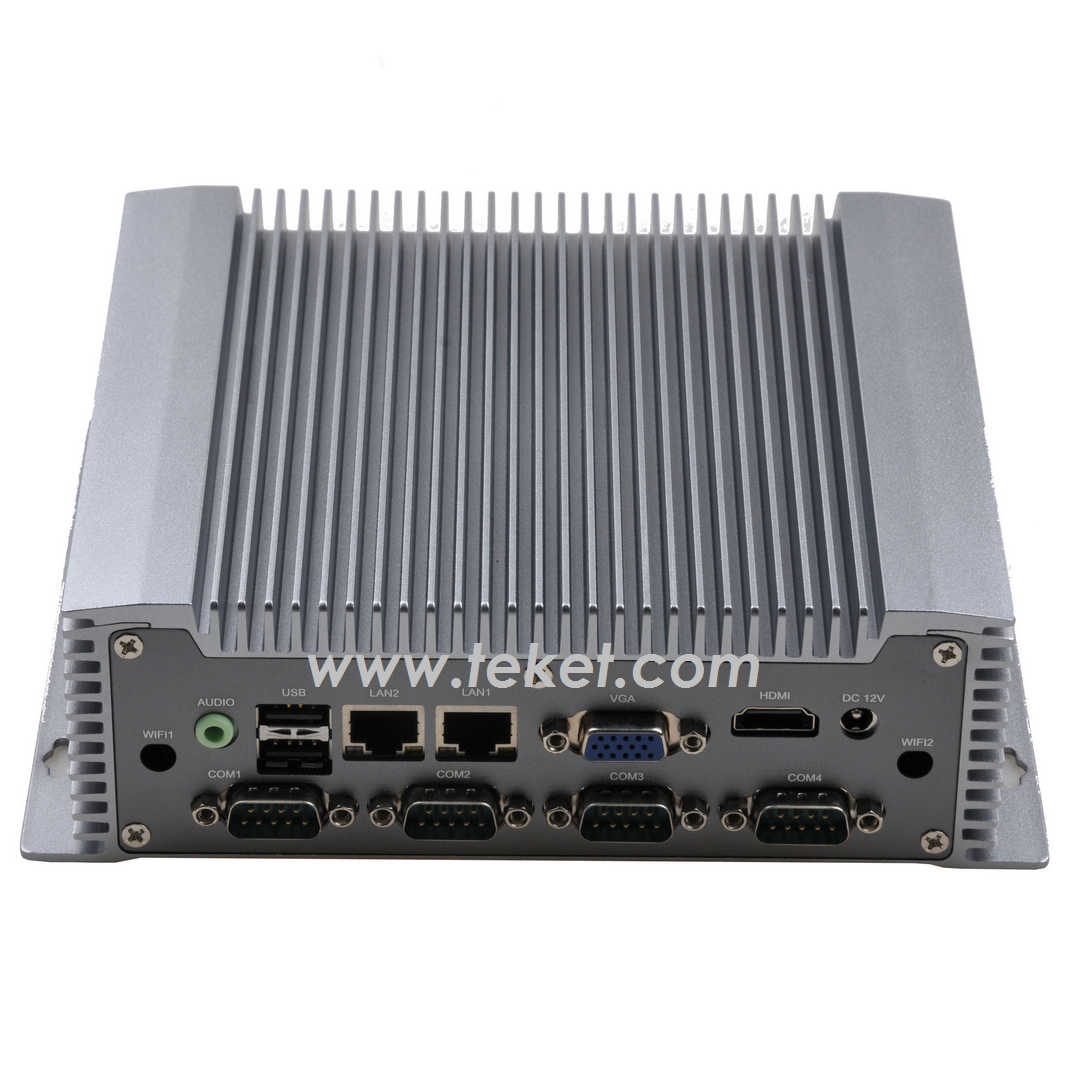

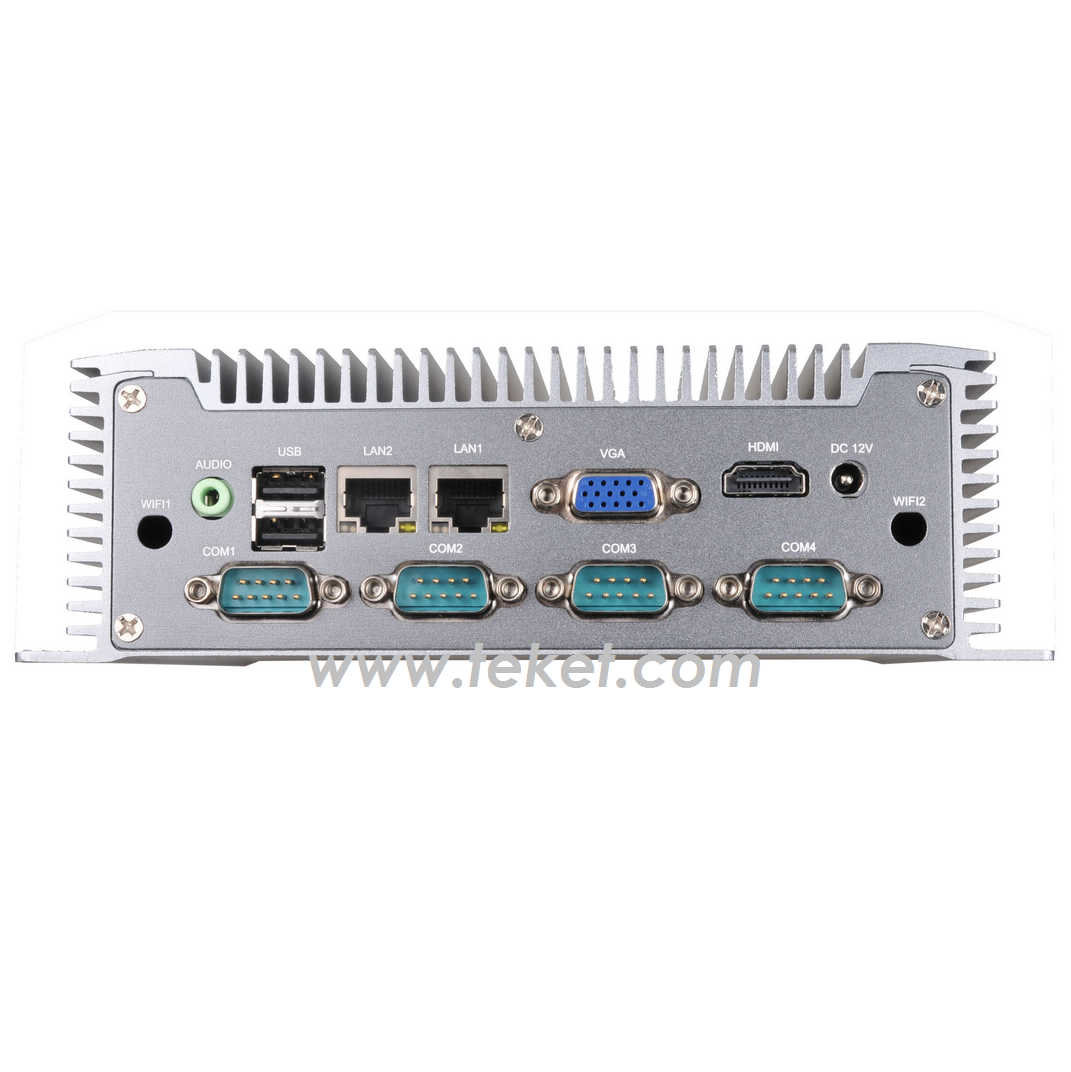

Rear Panel Port 2* USB 2.0
4* COM
1* HDMI
1* VGA
2* LAN
1* Line out(green)
1* DC_12V IN
1* WIFI antenna port
Cooling System 1* SYSFAN
Operating Temperature -0℃~50℃
Storage Temperature -20℃~70℃
Operating Humidity 5%-95%(relative humidity; non-condensing)
Anti-vibration 5~400Hz/random operating
Form Factor 172*107*54mm (L*W*H/mm)
Power Input DC_12V single power input
Installation Desktop or wall mounting
Material and craft Sandblasting oxidation process (Black)

Form Factor Mini-ITX Form Factor
3.5" SBC 6 layers, pcb size: 148x102mm
