-->> Intel NUC 11 Essential Kit Atlas Canyon NUC11ATKPE N6005 NUC11ATKC4 N5105 NUC11ATKC2 N4505 minic pc 64GB eMMC TPM <<--

NUC11ATKPE (board NUC11ATBPE) Intel® Pentium® Silver N6005 Processor (4M Cache, up to 3.30 GHz) 4 Cores 4 Threads
NUC11ATKC4 (board NUC11ATBC4) Intel® Celeron® Processor N5105 (4M Cache, up to 2.90 GHz) 4 Cores 4 Threads
NUC11ATKC2 (board NUC11ATBC2) Intel® Celeron® Processor N4505 (4M Cache, up to 2.90 GHz) 2 Cores 2 Threads
mini pc NUC11ATKC2 4GB DDR4 SO-DIMM; 64GB eMMC on-board; Windows 11 Home in S Mode pre-installed

Intel NUC 11 Essential Kit Atlas Canyon NUC11ATKPE N6005 NUC11ATKC4 N5105 NUC11ATKC2 N4505 minic pc 64GB eMMC TPM

Intel® NUC 11 Essential Kit - NUC11ATKC4
Essentials
Product Collection
Intel® NUC Kit with Intel® Celeron® Processors
Code Name
Products formerly Atlas Canyon
Status
Launched
Launch Date
Q1'22
Supported Operating Systems
Windows 11*, Windows 10*, Linux*
Board Number
NUC11ATBC4
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
# of Internal Drives Supported 1
Lithography 10 nm
TDP 15 W
DC Input Voltage Supported 19VDC
Processor Included
Intel® Celeron® Processor N5105 (4M Cache, up to 2.90 GHz)
Intel vPro® Platform Eligibility ‡ No
Total Cores 4
Total Threads 4
Processor Base Frequency 2.00 GHz
Warranty Period 3 yrs
Recommended Customer Price
$146.70 - $163.92
Supplemental Information
Embedded Options Available No
Memory & Storage
Included Storage
Optional 64GB eMMC
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2933 1.2V SO-DIMM
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output DP++/HDMI
# of Displays Supported ‡ 2
Expansion Options
PCI Express Revision Gen 3
M.2 Card Slot (wireless) 1
M.2 Card Slot (storage) 1

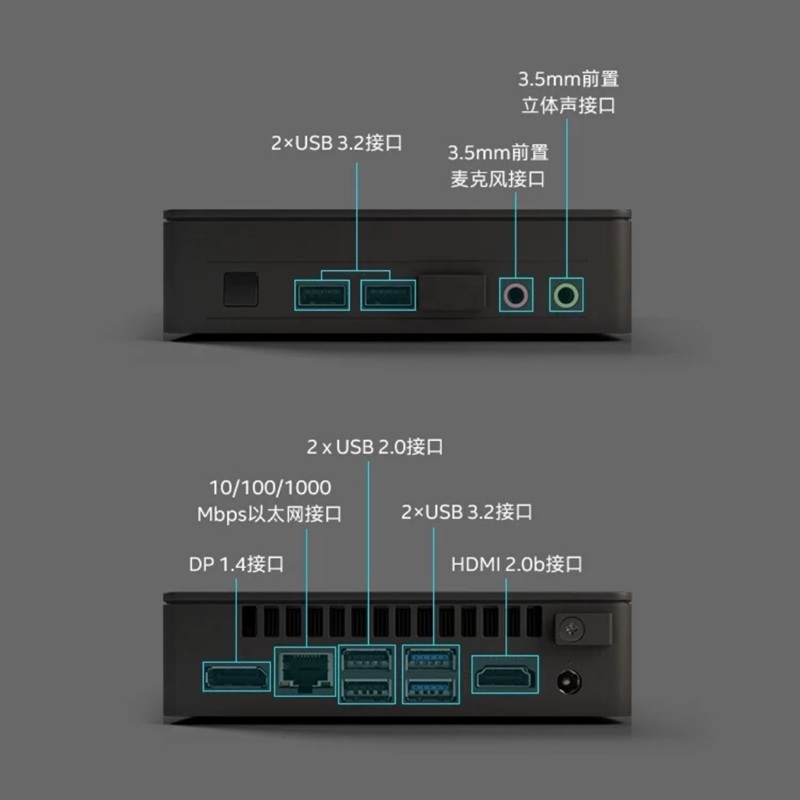

I/O Specifications
# of USB Ports 6
USB Configuration
2x front USB 3.2 Gen 1 and 2x rear USB 3.2 Gen 2; 2x USB 2.0
USB Revision
3.2 Gen 2 / 3.2 Gen 1 / 2.0

Audio (back channel + front channel)
1x 3.5mm stereo out jack, 1x 3.5mm microphone jack

Integrated LAN
10/100/1000

Integrated Wireless‡
Intel® Wireless-AC 9462 + Bluetooth 5.0

Integrated Bluetooth
Yes

Package Specifications
Chassis Dimensions
135x115x36mm

Advanced Technologies
Intel vPro® Platform Eligibility ‡
No

Intel® HD Audio Technology
Yes

Intel® Platform Trust Technology (Intel® PTT)
Yes

Security & Reliability
Intel® AES New Instructions
Yes

optional accessories: Infrared keybaord and 2.4G/RF wireless keyboard with mouse (trackball or touchpad)
Infrared Keyboard with Rubber Trackball K809	2.4G/RF Wireless Keyboard with Touchpad K8C	2.4G/RF Wireless Keyboard with Touchpad K8
