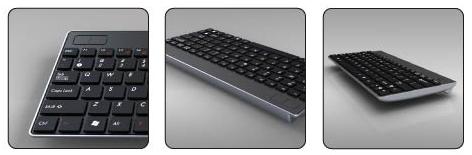

Wireless Keyboard With Trackball K2

Cordless Mini Trackball Keyboard

Feature:
1.RF and Bluetooth available
2.Unique hair line texture
3.Mini trackball offers smooth operation
4.Ideal receiver storage
5.Portable slim design allows to store inside your note book
6.Spill-safe keyboard to resist accidental spills
7.Fashion square key design

Technical:
Wireless: 2.4Ghz/Bluetooth
Interface: USB 1.1
Trackball resolution: 1000dpi
Led: low battery & Pairing indicatior
Easykey: 11
Battery: 2xAA Alkaline cells

System Requirements: Windows XP,Vista, 7 etc.

Operating Temperature 0 ~ +40¡æ
Compatibility: IBM compatible PC,USB interface
Operating system: Windows XP,Windows Vista,Windows 7
WHQL approval Windows 7 32bit / 64bit
Certification: EMC,FCC,CE
Safety: CE/LVD
Other certificates ¨C if necessary

Note: EasyKey means dual funcation of Fn ket(F1-F12), operation by depressing Fn+Easykey

Mechanical Specification
¡¤Dimensions: 266(L) x 127(W) x 9.8/15.7(H) mm
¡¤Weight: 320g ( W/O Battery )
¡¤Key no US(83 keys)£¬UK(84 keys)£¬JA(87 keys)£¬KR(83 keys)
¡¤Key pitch 17.42mm 1*1 Key
¡¤Keyboard Technology: Membrane
¡¤Mouse Function: Patented mechanical trackball with 2 Buttons
¡¤Color: Alternative
¡¤Cable Length: Null
¡¤Language: Alternative
¡¤Switch Life: 5 million cycles 3~5 times/sec
¡¤Switch Travel: Initial :1.70¡À0.3mm, After 5 million cycles: 1.70¡À0.5mm
¡¤Keytop force 55gm +/-15gm
¡¤Switch activation: mechanism,Membrane
¡¤Printing: Silk printing

Mouse Specification
¡¤Mouse function Pixart PAW3204DB optical sensor+2 Button
¡¤Resolution 400CPI

Mouse Button specification
¡¤Travel 0.25mm +/-0.10mm
¡¤Force 180gm +/-10gm
¡¤Switch activation, mechanism,Membrane + Plastic button
¡¤Life 1 million cycles 3~5 times/sec
¡¤Power button Slide Switch
¡¤Print: Silk printing
¡¤Life 1 million cycles 3~5 times/sec
¡¤Power button Slide Switch
¡¤Print Silk printing
¡¤Paint Thickness : um Gloss :
¡¤LED Color: Amber Indicator
When the voltage of the battery is lower than 2.2V, Amber led flashed at the time of key in.
Flash rate: 1 cycle per second. (Turn on time: 100ms). Continue for 20 seconds

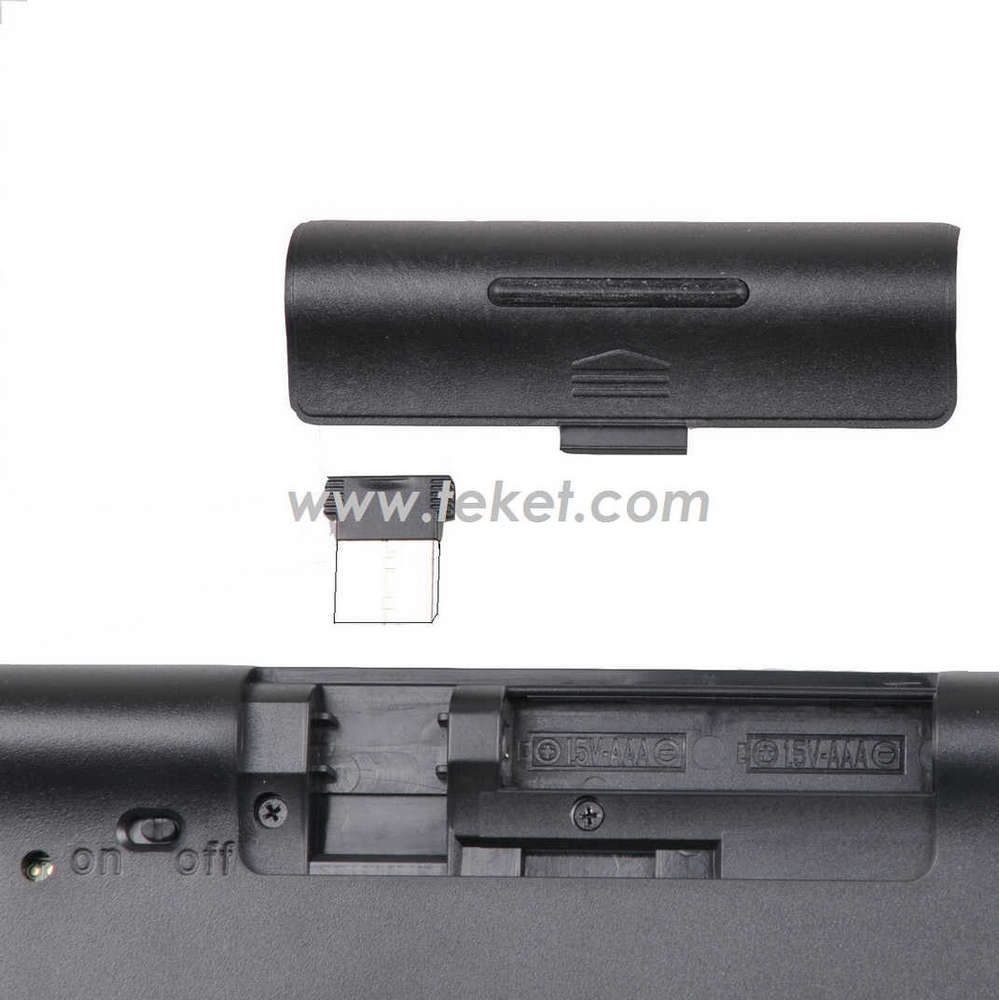

Receiver Specification
Dongle Dimension 15 (L) 22.73 W) 7.6(H) mm
Weight 2.3g max.
Print Silk printing

RF Specification
Frequency 2.405~2475GHz
Deviation +/-160KHz
Modulation mode GFSK
Channel 71CH(2.405GHz~2.475GHz)
ID number 2^16 (65536)
Connect When keyboard ¡° Fn+Insert¡±key press.
Effective operating distance: 10Meters

Interference test: 802.11b/g/n , Bluetooth, Microwave oven, 2.4GHz cordless phone
Interface USB 1.1

Inner packing:
Dimensions: 426 x 150 x 25mm

Outer packing:
20pcs/carton

Fn Complex key function£º

(01) Fn+F1= Sleep
(02) Fn+F2= Play/Pause
(03)Fn+F3= Stop
(04) Fn+F4= Prev Track
(05) Fn+F5= Next Track
(06) Fn+F6=Media Player
(07) Fn+F7= E_Mail
(08)Fn+F8= Internet
(09) Fn+F9= Mute
(10) Fn+F10= Volume down
(11) Fn+F11= Volume up
(12) Fn+F12= Pause/Break

Fn Off Fn On
Right Right End
Up Up Page Up
Down Down Page Down
Left Left Home
Ins Ins Connect
Del Del Scr LK

Power Specification
Battery AAA * 2 , Alkaline cells
DC 3V , ¡À5% Power supply Power consumption
Keyboard:<6mA Mouse:<10mA
Working current
<1mA Standby current
200 uA Sleep current
Low battery voltage 2.2V
Battery life 56 Days (keyboard:2 hour, mouse:2 hour per day)
